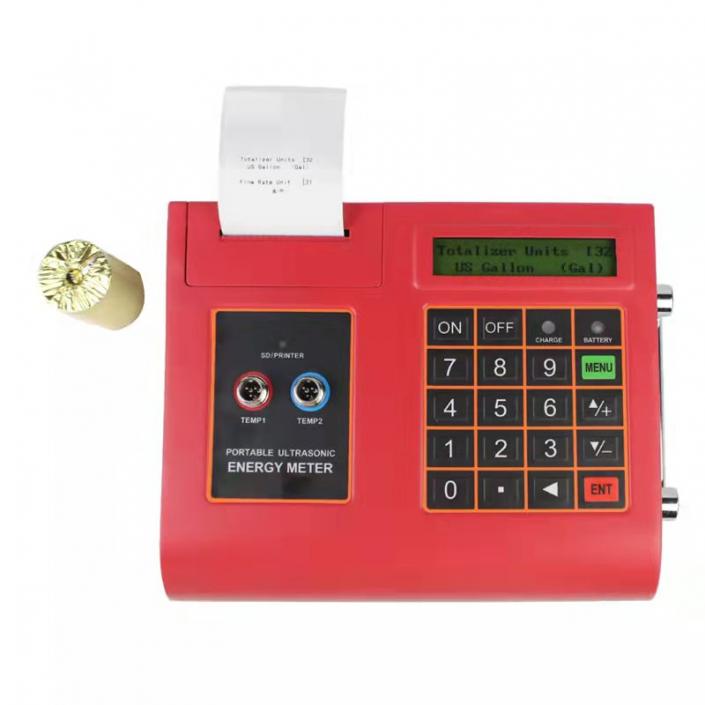

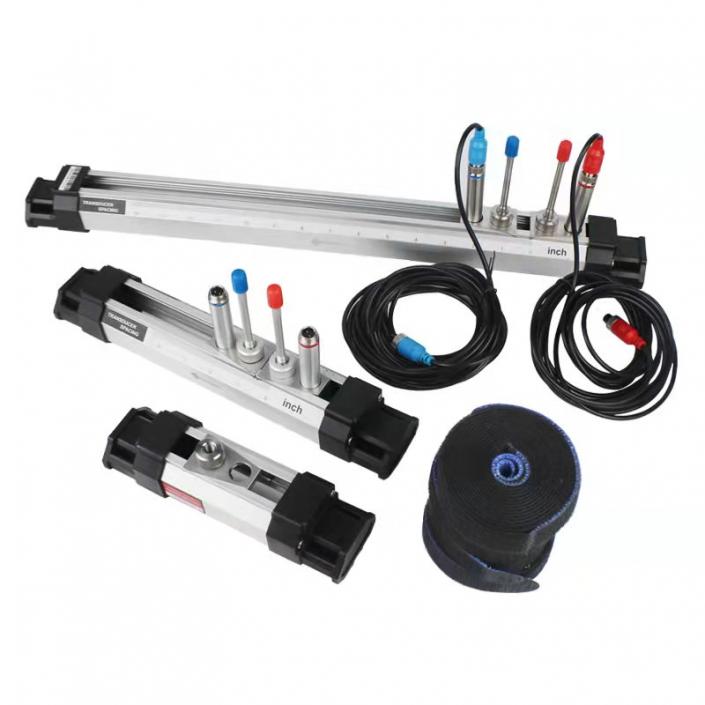

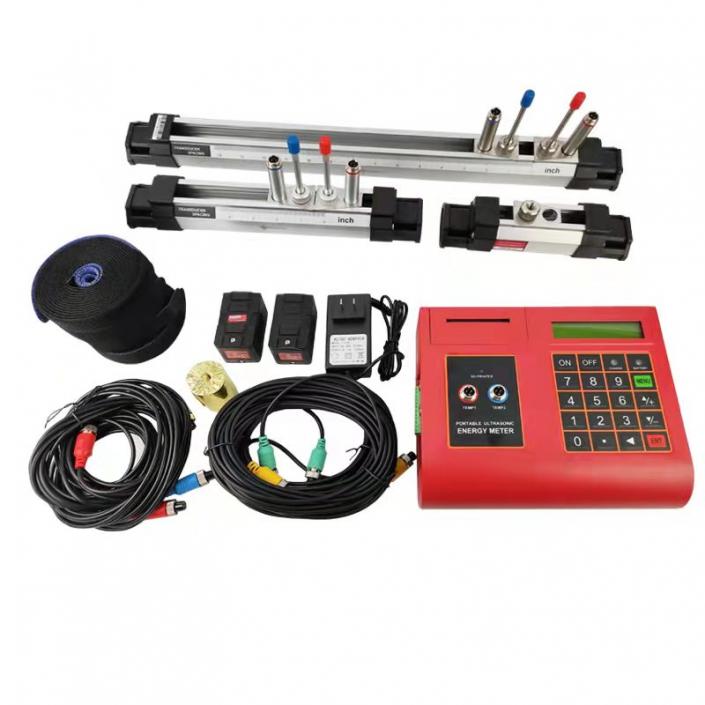

Portable ultrasonic flowmeter realizes the non-contact measurement of the liquid flow. The sensor is installed on the outer wall of the pipeline to complete the flow measurement. Convenient and accurate, built-in printer and SD card memory, can print the set measurement value instantly or regularly.
Function
1.Measure instantaneous flow.Measure the cumulative flow.
2.Measure the flow rate.Measure the energy.
3.Two way measurement system, forward total amount, reverse total amount and difference total amount, can display positive and reverse flow.
Features:
♦ Adopt non-contact measurement method.Wide measuring range
♦ There are no moving mechanical parts, and it is not affected by system pressure and harsh environment.
♦ Very wide application.Large screen LCD display,small size, light weight

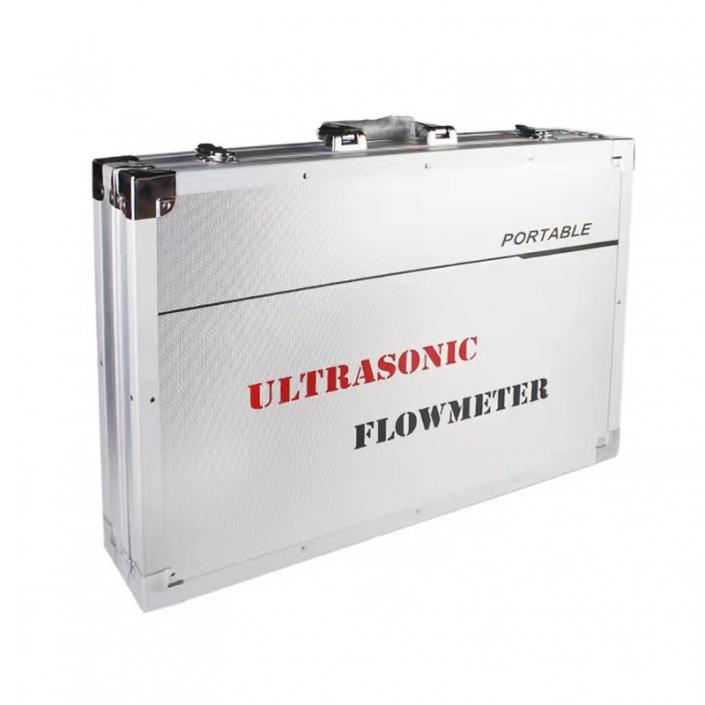

♦ Convenient to carry, equipped with aluminum alloy protective box, waterproof, dustproof and shockproof.
♦ Built in data recorder and rechargeable battery.
♦ Fault self diagnosis function, no data loss after power failure.
Water, pure water, seawater, sewage.
Chemical liquids,fuel oil and other fluids.
Water conservancy,Metallurgy
|
Portable ultrasonic flowmeter |
Accuracy |
flow ±1%, heat ±2% |
Tube diameter: |
DN15-DN6000 |
Flow rate |
0-±10m/s |
Measuring medium temperature: |
-30-160°C |
Turbidity |
10000ppm, and the bubble content is small |
Applicable pipes |
Steel, stainless steel, copper, PVC, aluminum, fiberglass and other pipes. Lining is allowed. |
Signal Output Signal input |
1 way 4~20mA output |
1 way OCT output |
|
1 circuit relay output |
|
3 way 4~20mA input |
|
2 way temperature messure |
|
Data interface |
RS485 |
Communication protocol |
MODBUS,M-BUS,HART,ETC |
Display |
LCD display |
Keyboard |
16+2 Touch keyboard |
Data record |
Thermal printer External SD card |
Power supply |
Rechargeable NI-MH batteries 2000mAH |
