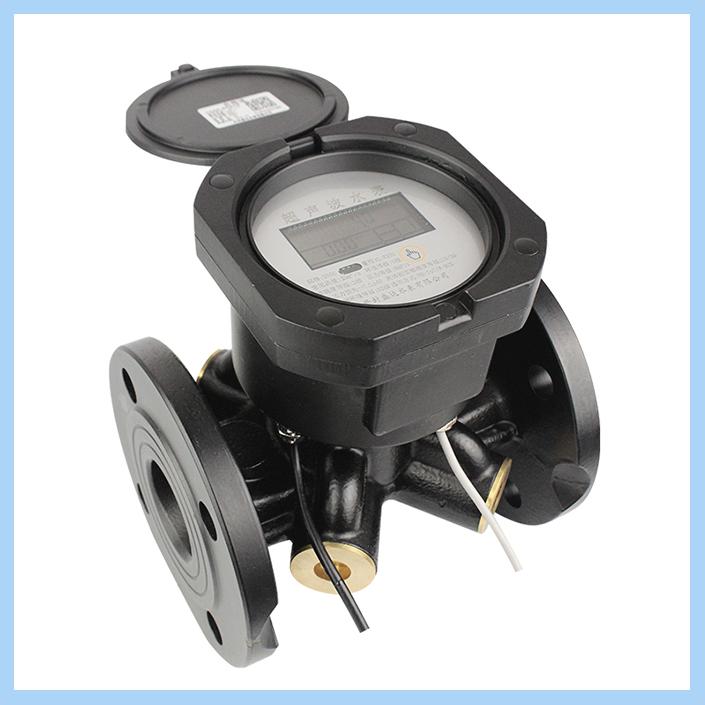

Octave Ultrasonic Water Meter

Application Range

Utilities

Waterworks

Industrial

Agricultural applications

Product Description

Deliver condition:

1. Size:DN40-DN600

2.Body:Brass/Nylon/stainless steel

3.R=250,400,500

4.Battery life:10-15 years.

5.Max work pressure:PN16.

6.Protection class:IP68

7.Pressure loss:≤0.063Mpa

8.Water temperature:0.1-90°C

9.Standards:ISO4064 Class B

10.Certificate:MID,CE,IOS,ETC

11.Output Options:Pulse/4-20ma/M-BUS/Modbus

12.Communication mode:wired(RS485)/wireless(LoRaWAN,NB-IOT,4G)

13.Software:free for clients


Technical Specification
Size R(Q3/Q1) Qs(m³/h) Q4(m³/h)
Q3(m³/h)
Q2(m³/h)
Q1(m³/h)
DN50 R250 0.05 50 40 0.256 0.16
DN65
R250
0.079 78.75 63 0.4032 0.252
DN80
R250
0.125 125 100 0.64 0.4
DN100
R250
0.2 200 160 1.024 0.64
DN125
R250
0.3125 312.5 250 1.6 1
DN120
R250
0.5 500 400 2.56 1.6
DN200
R250
0.788 787.5 630 4.032 2.52
DN250
R250
1.25 1250 1000 6.4 4
DN300
R250
2 2000 1600 10.24 6.4


Message

Related Products

Related News

Indonesia Client’s Visit to SHENGDA Water Meter Factory for Long-Term Partnership

2024-07-11
Indonesia Client’s Visit to SHENGDA Water Meter Factory for Long-Term Partnership

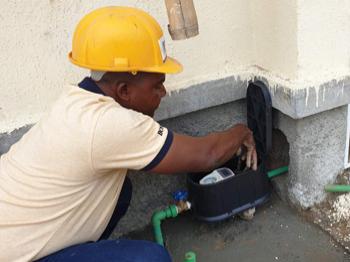

The Application and Prospects of Prepaid Water Meters in the Kenyan Market
