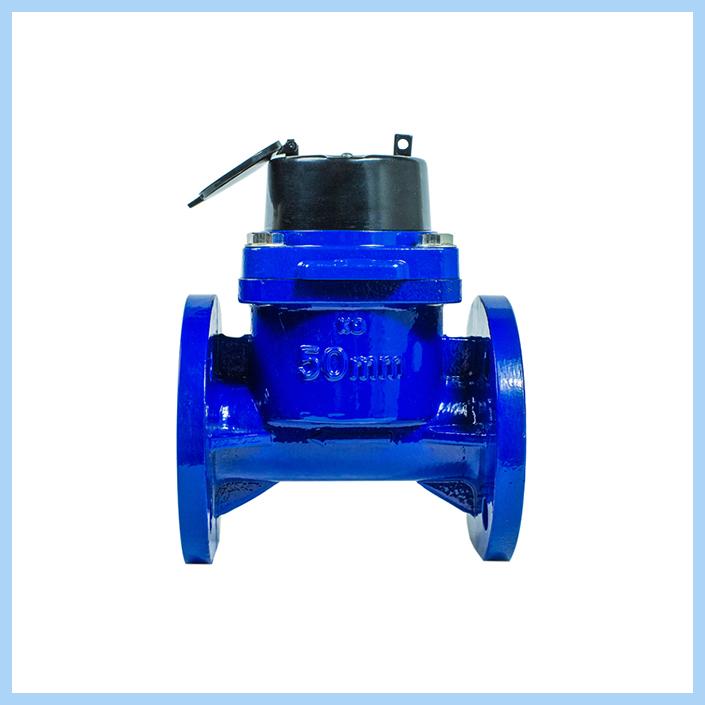

Irrigation water meter

Application Range

Water resources management

Agricultural irrigation

Garden management

Industrial production

Industrial automatic control and other industries


Product Description

Characteristics:

 Small transmission resistance, large flow capacity, anti blocking ability.

 Horizontal rotor, dry, magnetic coupling drive.

 The counter adopts vacuum sealing, anti condensation and atomization.

♦ Removable structure is adopted for easy installation and maintenance

 The measuring mechanism has strong universality.

♦ Remote transmission can be support.

Supplied condition:

Size:DN50~DN600

R:R25,R40

Material: Cast iron shell

Temperature grade: T30, T50, T90

Pressure class: MAP16, MAP10.MAP40

Pressure loss: P63

Installation method:

1. Horizontal installation.

2. Additional water filter is required.

3. The water inlet / outlet of the water meter needs straight pipe section U10 / D5.

Please check our irrigation water meter solution.

Please check the attachment for more information:

Technical Specification

Main technical parameters:

Model

DN

Metering grade

Common flow

Q3

Maximum flow

Q4

Boundary flow

Q2

Minimum flow

Q1

Minimum reading

Maximum reading

M3/h

M3

LXXG-50

2”

R20 (R25)

31.25

25

5

1.25

0.002

999,999

LXXG-65

2 1/2”

50

40

8

2

0.002

999,999

LXXG-80

3”

78.75

63

12.6

3.15

0.002

999,999

LXXG-100

4”

125

100

20

5

0.002

999,999

LXXG-125

5”

200

160

32

8

0.002

999,999

LXXG-150

6”

312.5

250

50

12.5

0.002

999,999

LXXG-200

8”

500

400

80

20

0.002

999,999

LXXG-250

10”

787.5

630

126

31.5

0.02

9,999,999

LXXG-300

12”

1250

1000

200

50

0.02

9,999,999
