The Clamp-on ultrasonic flowmeter realizes the non-contact measurement of the liquid flow. The sensor is installed on the outer wall of the pipeline to complete the flow measurement. It has the characteristics of small size, convenient carrying and accurate measurement.
Five types of Clamp-on Ultrasonic Flowmeter
The clamp-on sensor is installed on the surface of the pipe, and different sensors are selected to adapt to the caliber DN15~DN6000

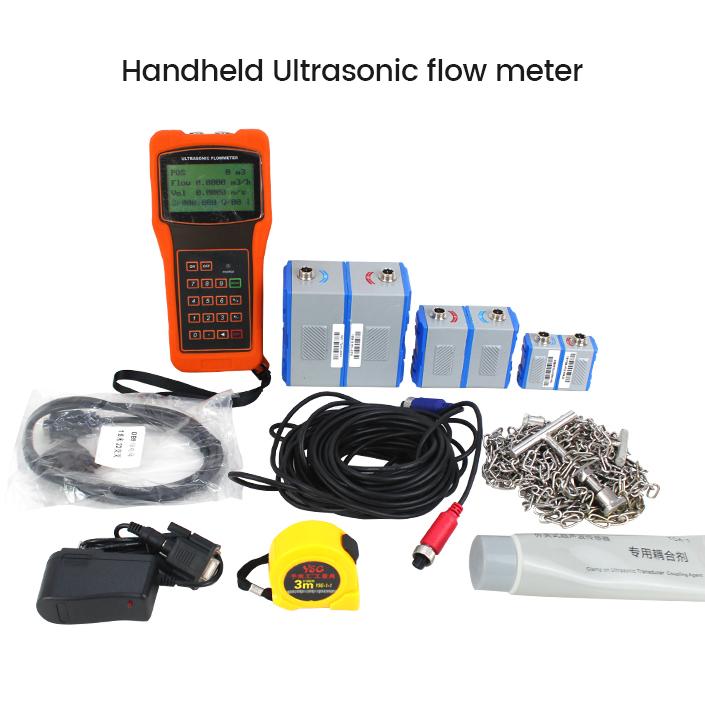

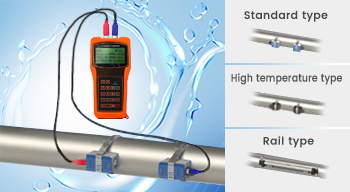

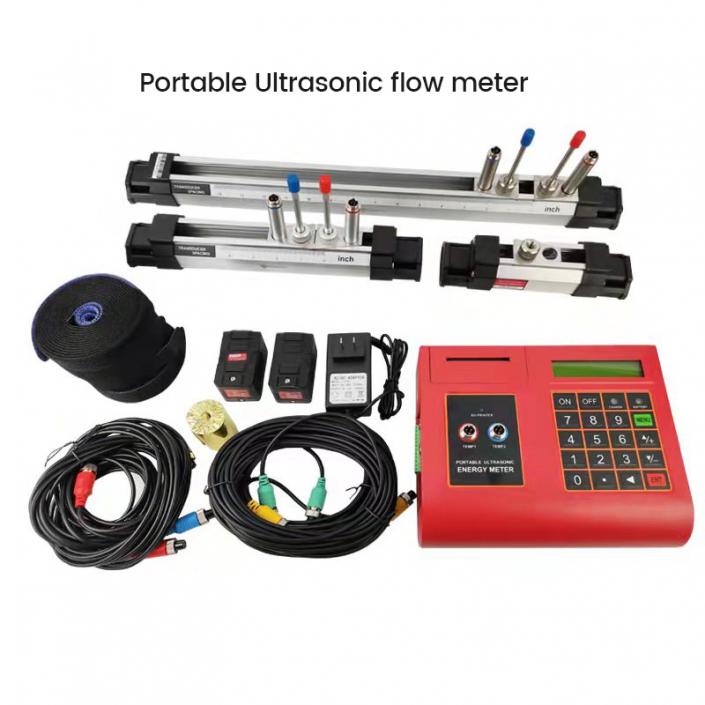

1.Handheld Clamp-on Ultrasonic Flowmeter
The handheld ultrasonic flowmeter is easy to carry and can be carried with you in a suitcase.

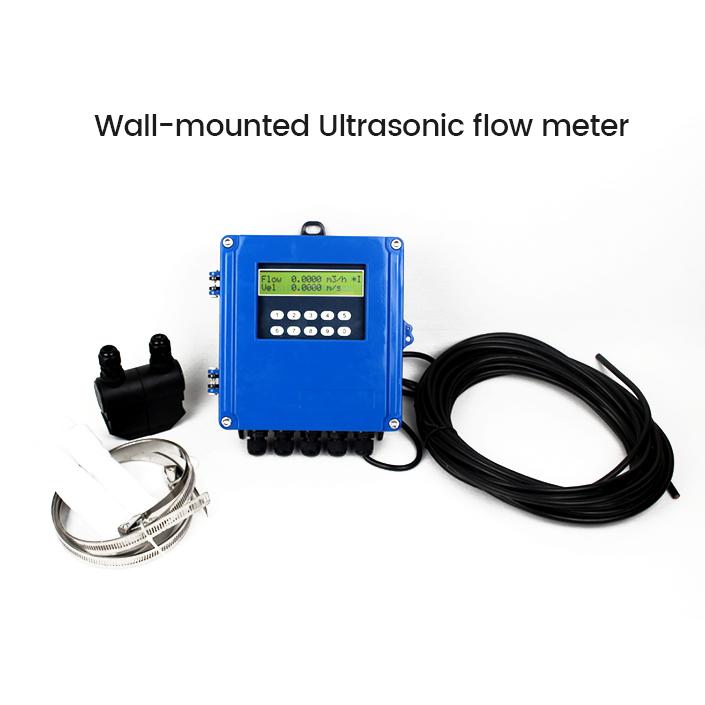

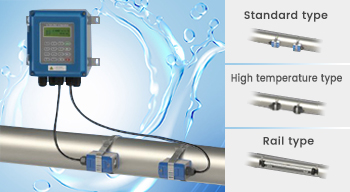

2.Wall mounted clamp on ultrasonic flow meter
Wall Mounted Clamp-on Ultrasonic Flowmeter can be installed on the wall, instrument box, distribution box, and the protection level of the host reaches IP67.

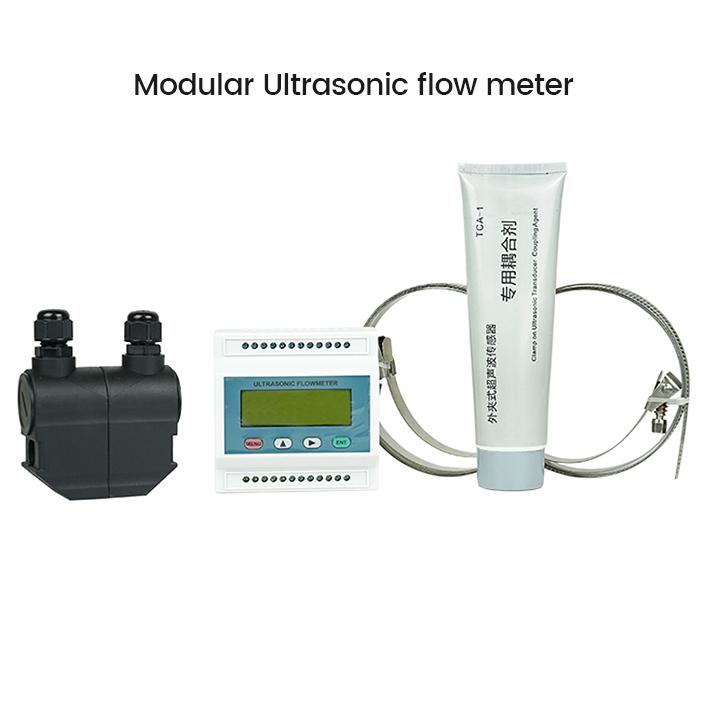

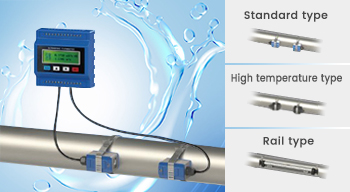

3.Modular clamp-on ultrasonic flowmeter
The flow meter is small in size, full of functions, and low in price. It is installed on a guide rail and is suitable for batch use and installation in an instrument box or power distribution cabinet.

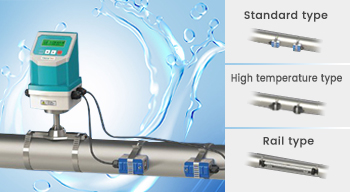

4.Integrated clamp-on ultrasonic flowmeter
The flow meter and sensor are installed on the measuring pipeline, and the flowmeter's protection level is IP68

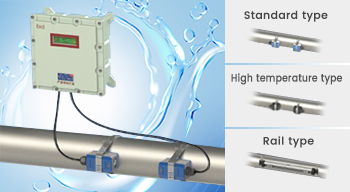

5.Explosion-proof clamping ultrasonic flowmeter
Mainly use isolation type explosion-proof, used in flammable and explosive occasions, explosion-proof grade DⅡBT5
Function
Measure instantaneous flow
Measure the cumulative flow
Measure the flow rate
Measure the energy
Two way measurement system, forward total amount, reverse total amount and difference total amount, can display positive and reverse flow.
Features:
♦ Adopt non-contact measurement method
♦ Wide measuring range
♦ There are no moving mechanical parts, and it is not affected by system pressure and harsh environment.
♦ Very wide application
♦ Large screen LCD display,small size, light weight
♦ Built in data recorder and rechargeable battery.
♦ Fault self diagnosis function, no data loss after power failure
Water (hot water,cold water,waste wate.etc)
Beverage, food and pharmaceutical processors.
Power plants, Metallurgy and miming applications.
Pipeline leak detection, inspection.
|
Clamp-on ultrasonic flowmeter |
Accuracy |
flow ±1%, heat ±2% |
Tube diameter: |
DN15-DN6000 |
Flow rate |
0-±10m/s |
Measuring medium temperature: |
-30-160°C |
Turbidity |
10000ppm, and the bubble content is small |
Applicable pipes |
Steel, stainless steel, copper, PVC, aluminum, fiberglass and other pipes. Lining is allowed. |
Signal Output Signal input |
1 way 4~20mA output |
1 way OCT output |
|
1 circuit relay output |
|
3 way 4~20mA input |
|
2 way temperature messure |
|
Data interface |
RS485 |
Communication protocol |
MODBUS,M-BUS,HART,ETC |
Display |
LCD display |
Keyboard |
16+2 Touch keyboard |
Data record |
Thermal printer External SD card |
Power supply |
Rechargeable NI-MH batteries 2000mAH |
