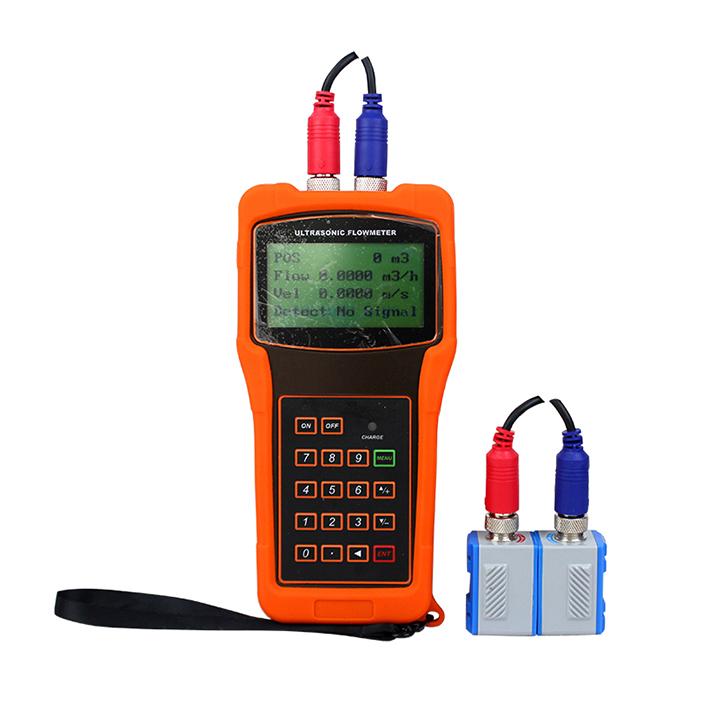

The hand-held ultrasonic flowmeter realizes the non-contact measurement of the liquid flow. The sensor is installed on the outer wall of the pipeline to complete the flow measurement. It has the characteristics of small size, convenient carrying and accurate measurement.
Function
1.Measure instantaneous flow.Measure the cumulative flow.
2.Measure the flow rate.Measure the energy.
3.Two way measurement system, forward total amount, reverse total amount and difference total amount, can display positive and reverse flow.
Features:
1.Adopt non-contact measurement method.Wide measuring range
2.There are no moving mechanical parts, and it is not affected by system pressure and harsh environment.
3.Very wide application.Large screen LCD display,small size, light weight

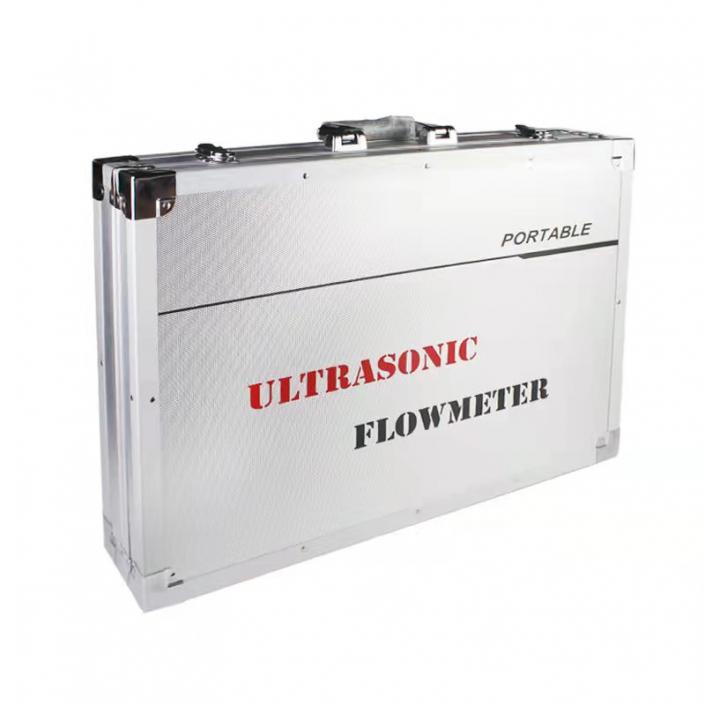

4.Convenient to carry, equipped with aluminum alloy protective box, waterproof, dustproof and shockproof.
5.Built in data recorder and rechargeable battery.
6.Fault self diagnosis function, no data loss after power failure.

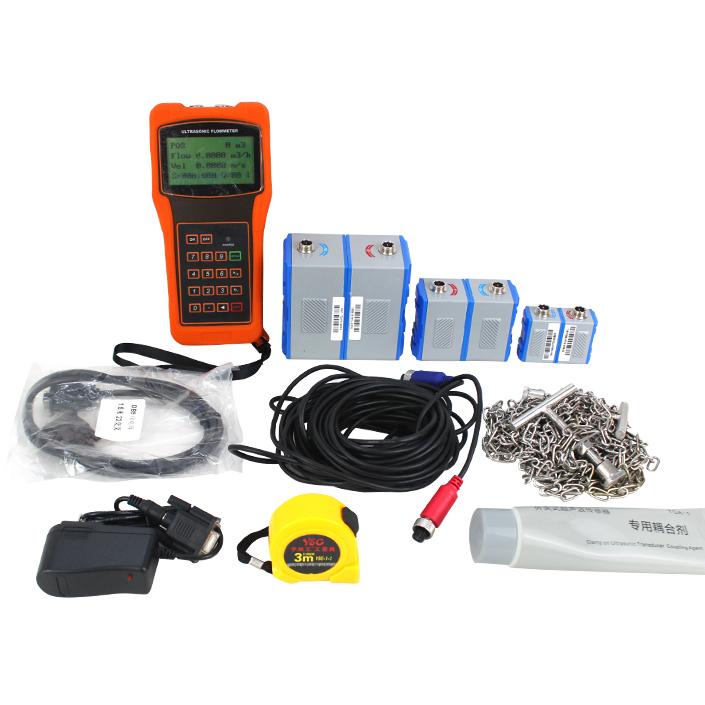

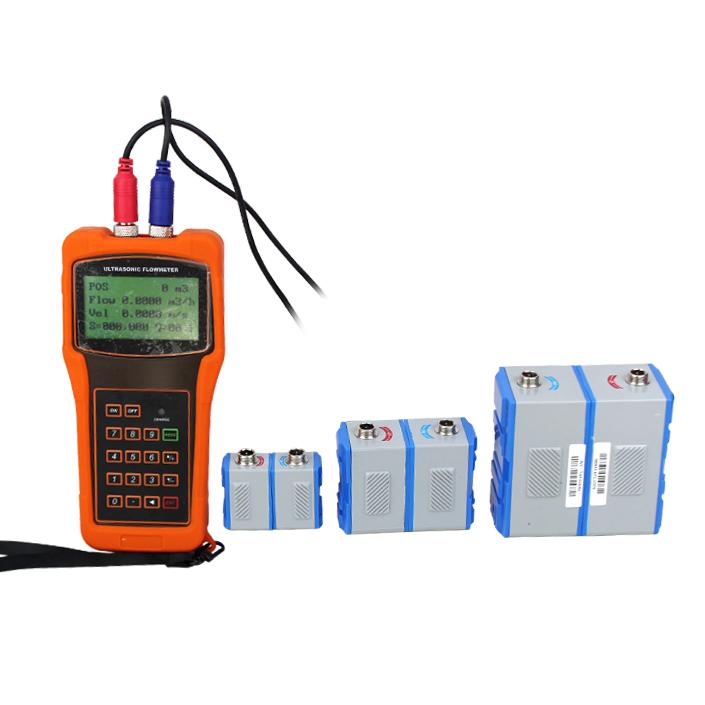

Types of transducer
|
Flow transducer |
Model |
measuring range |
Temperature |
|
Clamp on |
TS-2(small) |
DN25-DN100 |
-30°C~90°C |
|
TM-1(medium) |
DN50-DN700 |
||
|
TL-1(large) |
DN300-DN6000 |
||
|
High temp Clamp on |
TS-2-HT(small) |
DN25-DN100 |
-30°C~160°C |
|
TM-1-HT(medium) |
DN50-DN700 |
||
|
TL-1-HT(large) |
DN300-DN6000 |
Water, pure water, seawater,river water.
Fuel oil and other fluids
Water conservancy
Flow inspection
|
|
Handheld ultrasonic flowmeter |
Handheld ultrasonic energy meter |
|
Accuracy |
±1% |
±2% |
|
Tube diameter: |
DN15-DN6000 |
|
|
Flow rate |
0-±10m/s |
|
|
Turbidity |
10000ppm, and the bubble content is small |
|
|
Medium Tep: |
-30-160°C |
|
|
Applicable pipes |
Steel, stainless steel, copper, PVC, aluminum, fiberglass and other pipes. Lining is allowed. |
|
|
Signal Output Signal input |
1 way OCT Output (pulse width 6-1000ms, default 200ms) |
1 way 4~20mA output |
|
1 way OCT output |
||
|
1 circuit relay output |
||
|
3 way 4~20mA input |
||
|
2 way temperature messure |
||
|
Data interface |
RS232 |
RS485 |
|
Communication protocol |
MODBUS,M-BUS,HART,ETC |
|
|
Display |
LCD display |
|
|
Keyboard |
16+2 Touch keyboard |
|
|
Data record |
Built in 32MB memory |
Thermal printer External SD card |
|
Power supply |
Rechargeable NI-MH batteries 2000mAH |
|
|
Work time |
More than 12h |
More than 20h |
