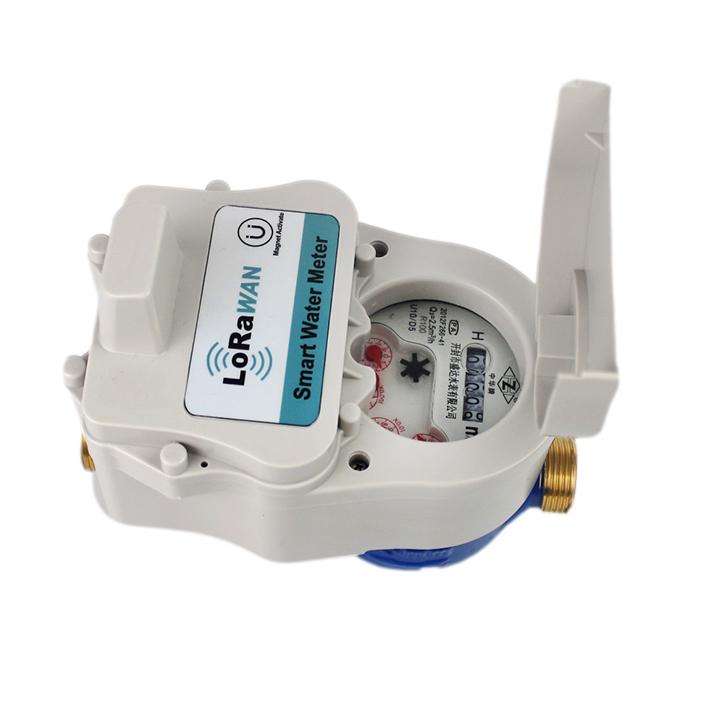

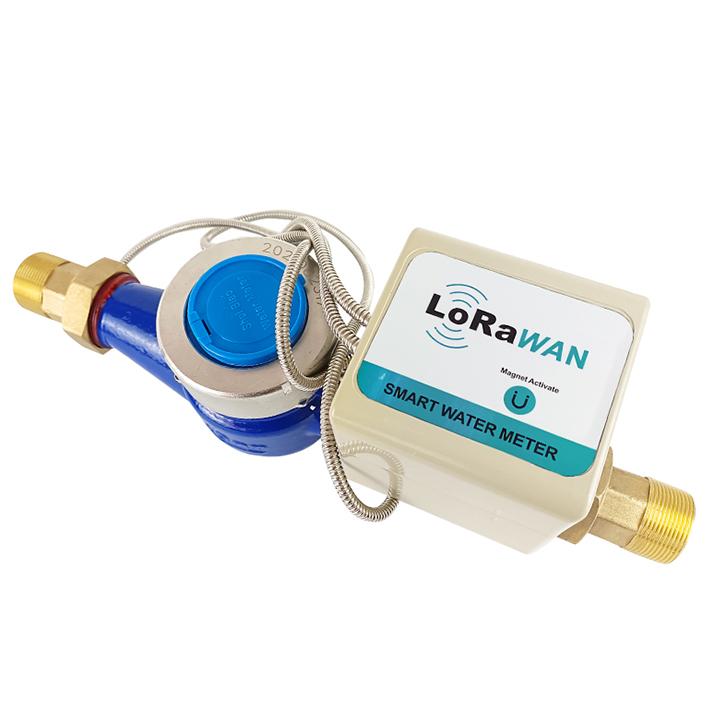

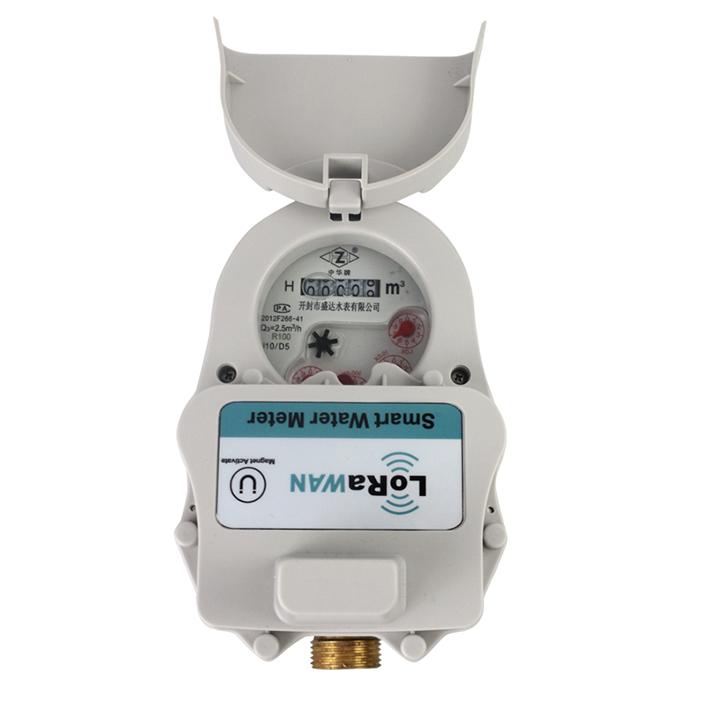

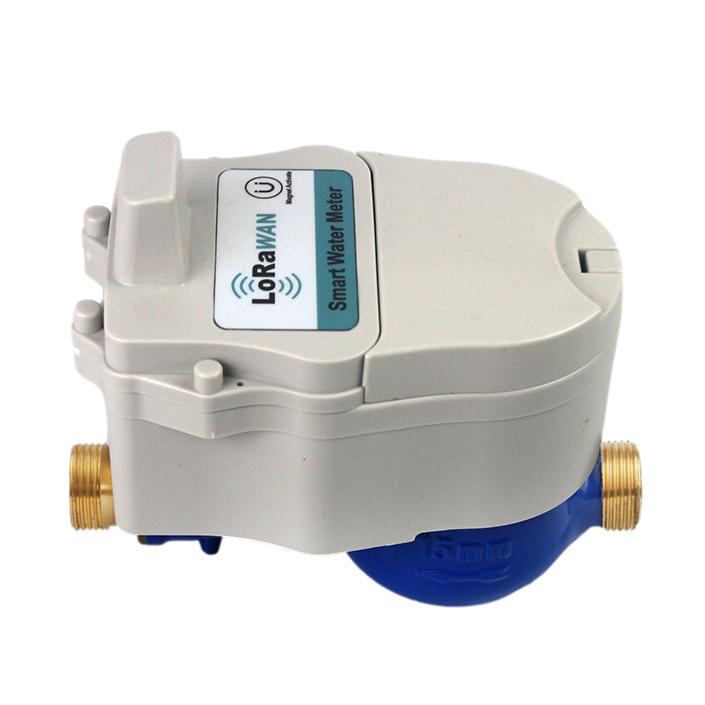

LoRaWAN Smart Water Meter

This type of LoRaWAN smart water meter produced with multi-jet water meter and LoRaWAN communication module.the LoRaWAN water meter with valve or without valve can be offered according to costomer' requirement.

Tell:WhatsApp:+86 18603780816
Product Description

Deliver condition of LoRaWan water meter

1. Model:LXSY 15~LXSY 300LoRaWAN water meter

2. Size:DN15-DN300

3.Body:Brass(with valve)/iron(without valve)

4.Type:Dry dial/wet dial(standard)

5.Max work pressure:PN16.

6.Protection class:IP68

7.Protocol: LORAWAN

8.Frequency: 433 to 923 MHz

9.Battery: ER18505M @ 3600mAh can last up to 8-10 years.

10.Pressure loss:≤0.063Mpa

11.Water temperature:T30,T90

12.Standards:ISO4064.

13.Certificate:MID

14.Working mode: Class A

15.Software:free for clients

16.Composition:LoRaWAN water meter,Gateway,Network servrt.

Characters and fuction

Wireless remote meter reading

Wireless remote control valve

Long data transmission distance (7.5km)

Vacuum sealed counter, keep clear in long term.

Special glass with high resistance to pressure and impact

The brass alloy water meter shell is coated with corrosion-resistant and antistatic paint

Multi jet working principle assures a long service life.

Please check ourLoRaWAN water meter solution.

Application Range

1.Household

2.Dormitory

3.Hotel

4.Residential property

5.Apartment

6.Warehouse

7.bulk size used for irrigation,water resources management,Industrial production,Garden management.


Technical Specification

Diameter

(mm)

Class

Q4

(m³/h)

Q3

(m³/h)

Q2

(m³/h)

Q1

(m³/h)

Min. Reading

m³

Max. Reading

m³

DN15

B

3.125

2.5

0.05

0.03125

0.0001

99999

DN20

B

5

4

0.08

0.05

0.0001

99999

DN25

B

7.875

6.3

0.126

0.07875

0.0001

99999

DN32

B

12.5

10

0.2

0.125

0.0001

99999

DN40

B

20

16

0.32

0.2

0.001

99999

DN50

B

31.25

25

3.15

0.5

0.001

99999
