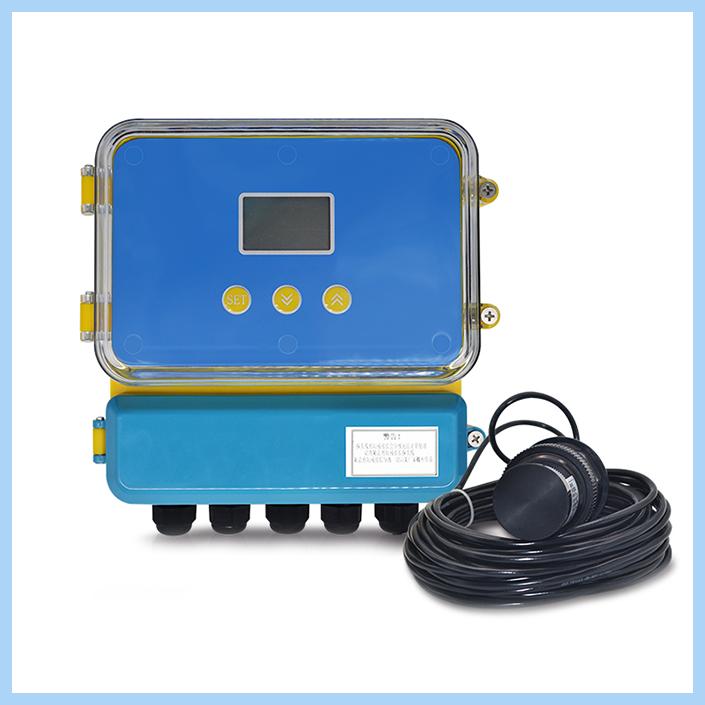

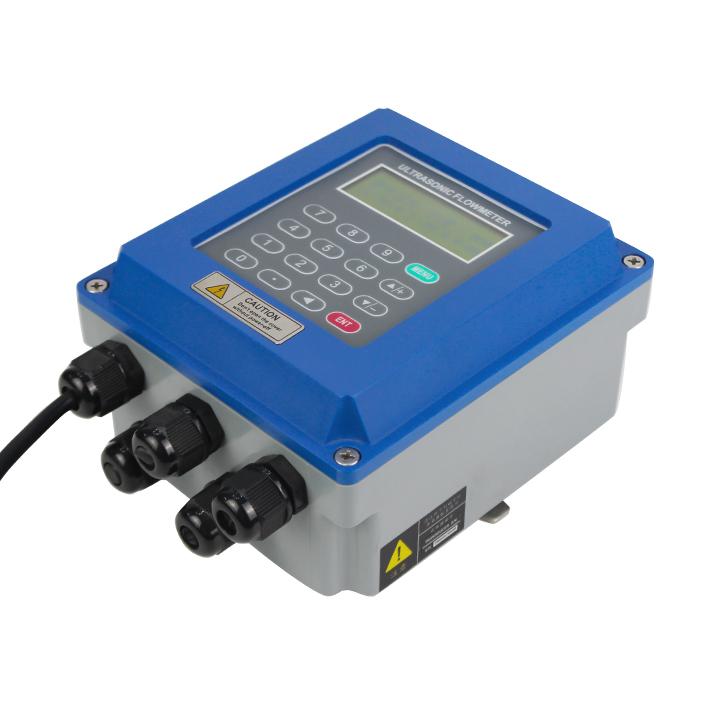

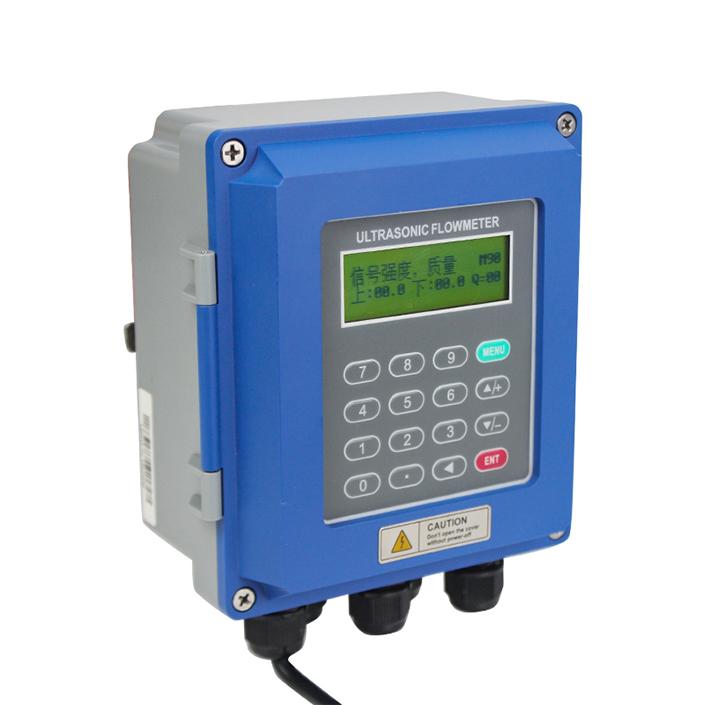

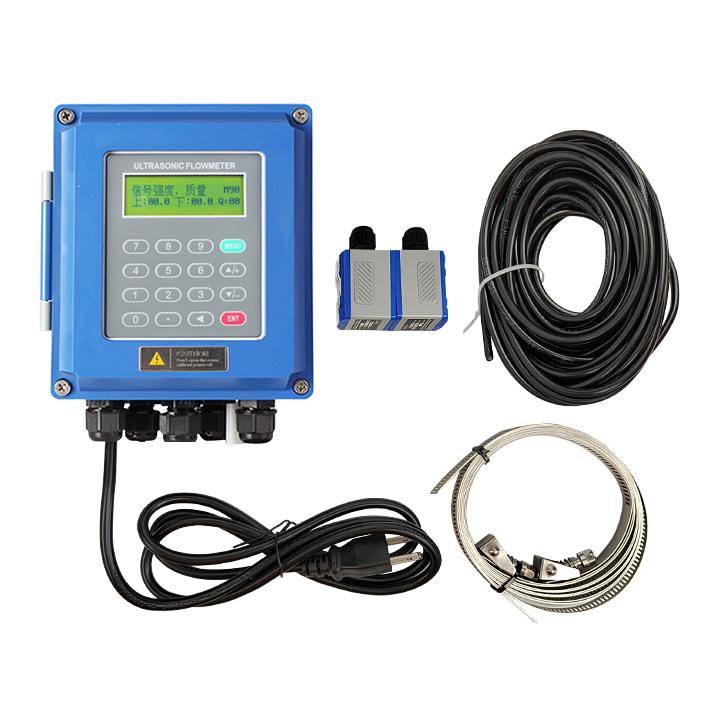

Wall-mounted ultrasonic flow meter is uses ultrasonic technology to measure the velocity of a fluid flowing through a pipe. These meters are installed on the exterior wall of the pipe and can measure flow without the need for intrusive pipework. They are widely used in various industries, including water and wastewater management, oil and gas, chemical processing, and HVAC systems.

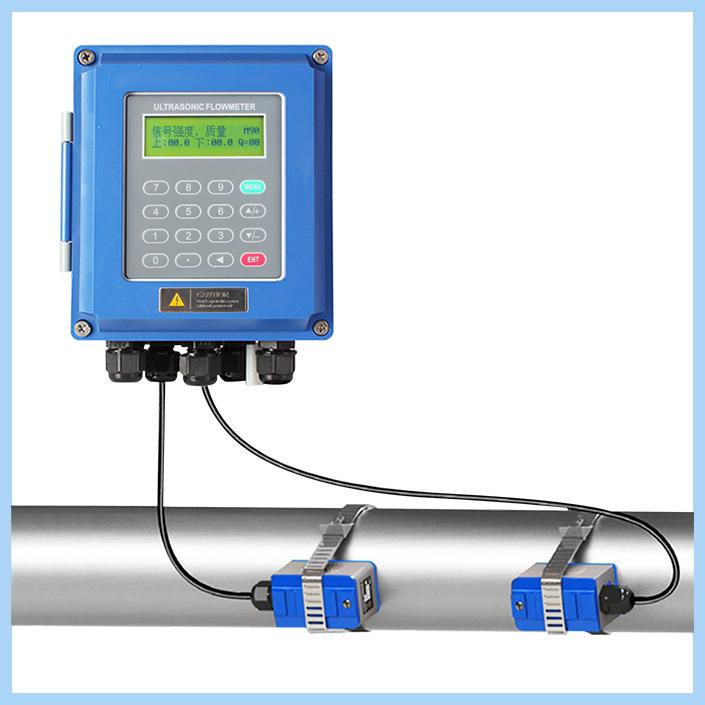

♦Clamp-On Design:No need to cut the pipe or stop the flow for installation. This minimizes downtime and maintenance costs.
♦No Pressure Drop:The meter does not come into contact with the fluid, there is no additional resistance or pressure drop.
♦ Wide Range of Applications: Suitable for measuring a variety of liquids, including clean, dirty, or corrosive fluids.
♦Applicable to Various Pipe Materials: such as metal, plastic, or even lined pipes.
♦Measurement accuracy 1%.
♦Convertor protection class lP67,transducer protection class lP68
♦Wide measurement range, pipe size from DN25 to DN 6000
♦Connect the temperature transducer can finish the heat/energy measurement.
♦No Fluid Contamination: Since the meter does not contact the fluid, there is no risk of contamination.
♦Optional SD card memory （Convenience for long-term and large datastorage.Available to do the dataprocessing like tabulation, statistical, dataanalysis, printing reports and productionflow curve by using data analysis software.）
|
Flow transducer |
Model |
measuring range |
Temperature |
|
Clamp on |
TS-2(small) |
DN25-DN100 |
-30°C~90°C |
|
TM-1(medium) |
DN50-DN700 |
||
|
TL-1(large) |
DN300-DN6000 |
||
|
High temp Clamp on |
TS-2-HT(small) |
DN25-DN100 |
-30°C~160°C |
|
TM-1-HT(medium) |
DN50-DN700 |
||
|
TL-1-HT(large) |
DN300-DN6000 |
Portable water
Raw sewage
Reclaimed water
Cooling water
River water
Chemicals
Oil
Plant effluent
|
|
Wall-mounted ultrasonic flowmeter |
Wall-mounted ultrasonic energy meter |
|
Accuracy |
±1% |
±2% |
|
Tube diameter: |
DN25-DN6000 |
|
|
Flow rate |
0-±7m/s |
|
|
Turbidity |
10000ppm, and the bubble content is small |
|
|
Medium Tep: |
-30-160°C |
|
|
Applicable pipes |
Steel, stainless steel, copper, PVC, aluminum, fiberglass and other pipes. Lining is allowed. |
|
|
Signal Output Signal input |
1 way OCT Output (pulse width 6-1000ms, default 200ms) |
1 way 4~20mA output |
|
1 way OCT output |
||
|
1 way relay output |
||
|
3 way 4~20mA input |
||
|
2 way temperature messure |
||
|
Data interface |
RS232 |
RS485 |
|
Communication protocol |
MODBUS,M-BUS,HART,ETC |
|
|
Display |
LCD display |
|
|
Keyboard |
16+2 Touch keyboard |
|
|
Data record |
Built in 32MB memory |
Thermal printer External SD card |
|
Power supply |
Dc 8-36V or Ac 85-264V (optional) |
|
