Shengda offers the multi-jet water meter with body materails cast iron,ABS,Nylon,stainless steel and brass with R160，R100 and R80，the diamater from DN15 to DN50,we support OEM.
Characters of Multi jet water meter
♦The shell and cover of different materials can be customized
♦Support OEM
♦Proven multi-jet flow meter design
♦Dry dial, Magnetic transmission structure
♦Antimagnetic, Antifreezing
♦Vacuum sealed counter, keep clear in long term.
♦ISO4064, Class B
♦Remote transmission device can be added upon request
Supply condition
♦Size:DN15-DN50 (DN50~DN300,please check bulk water meter)
♦Body:Brass/iron/stainless steel/plastic/Nylon(optional)
♦Type:Dry dial/wet dial(optional)
♦Max work pressure:PN16/PN10(optional)
♦Pressure loss:≤0.063Mpa
♦Water temperature:T30,T50,T90(optional)
♦Standards:ISO4064.class B
♦R:R80/R100/R160(R=Q3/Q1)(optional)
♦Install:Horizontal use/Vertical use

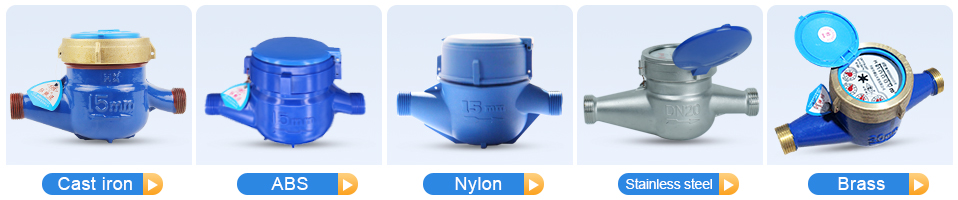

We can offer the multi jet water meter with body materails as follows:
Cast iron water meter,ABS water meter,Nylon water meter,stainless steel water meter and brass body water meter with R160.
Please check the attachment for more information：
1.Household
2.Dormitory
3.Hotel
4.Residential property
5.Apartment
6.Warehouse
7.bulk size used for irrigation,water resources management,Industrial production,Garden management.
|
Diameter (mm) |
Class |
Q4 (m³/h) |
Q3 (m³/h) |
Q2 (m³/h) |
Q1 (m³/h) |
Min. Reading m³ |
Max. Reading m³ |
|
DN15 |
B |
3.125 |
2.5 |
0.05 |
0.03125 |
0.0001 |
99999 |
|
DN20 |
B |
5 |
4 |
0.08 |
0.05 |
0.0001 |
99999 |
|
DN25 |
B |
7.875 |
6.3 |
0.126 |
0.07875 |
0.0001 |
99999 |
|
DN32 |
B |
12.5 |
10 |
0.2 |
0.125 |
0.0001 |
99999 |
|
DN40 |
B |
20 |
16 |
0.32 |
0.2 |
0.001 |
99999 |
|
DN50 |
B |
31.25 |
25 |
3.15 |
0.5 |
0.001 |
99999 |
