LoRa Water Meter| LoRa Smart Water Meter

admin@henanpanda.com WhatsApp:0086-16613890990

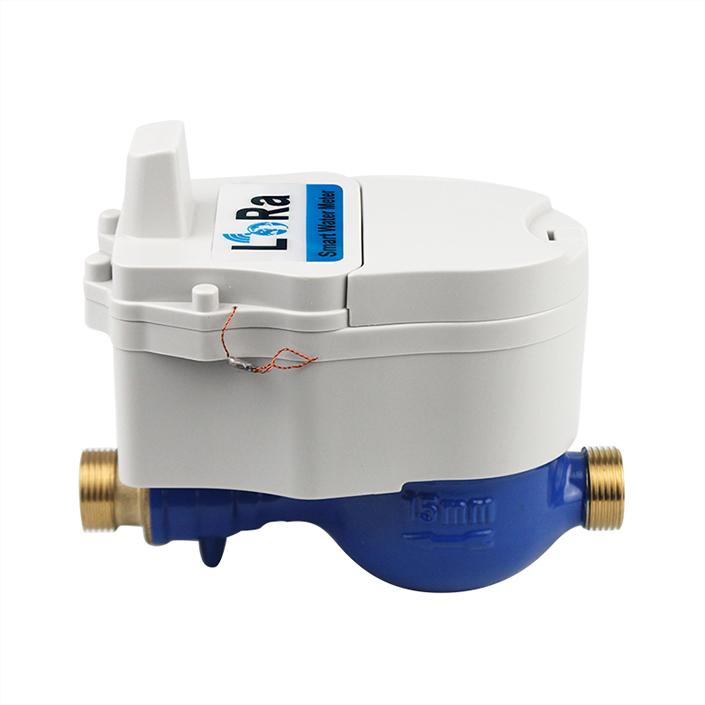

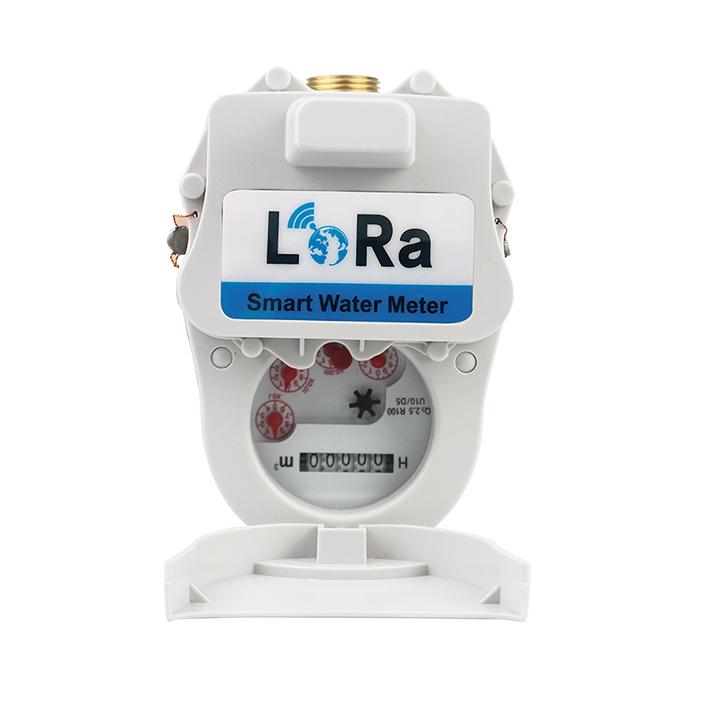

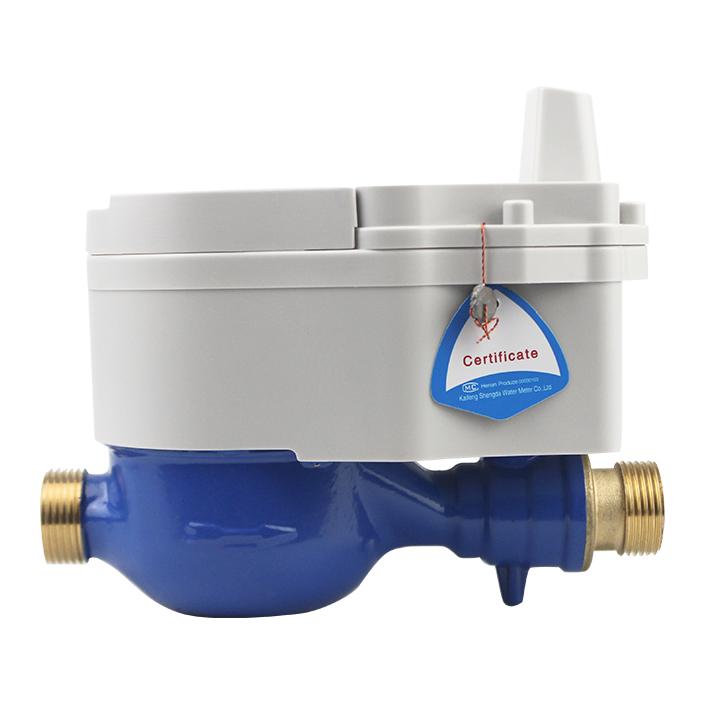

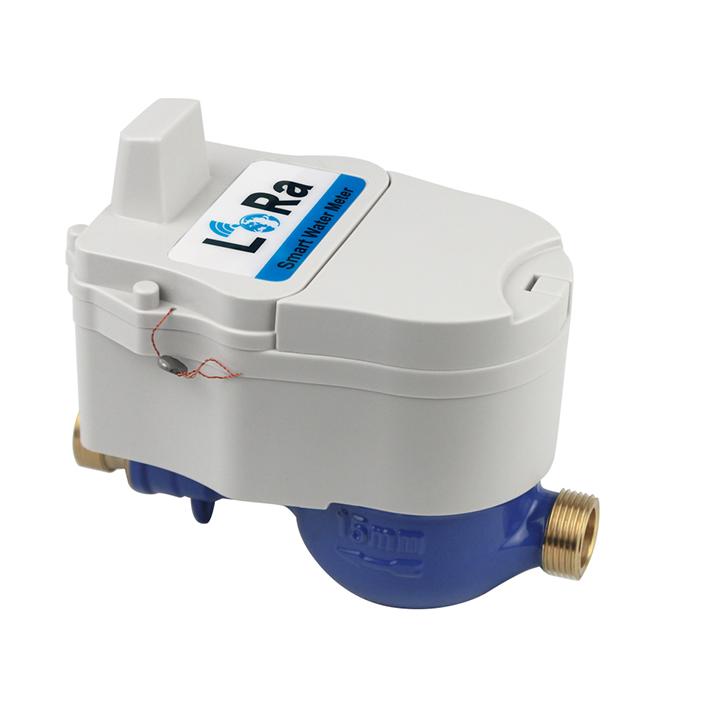

LoRa Smart water meter

Lora wireless remote smart water meter adopts Lora spread spectrum wireless transmission technology to convert the measurement information of traditional mechanical water meter into electrical signal and store it through microelectronic control circuit. It can automatically copy metering data and control valves through wireless remote network.

Tell：WhatsApp:0086-16613890990

Product Description

Function of LoRa water meter

1.Wireless wake up

2.Automatic valve closing under attack

3.The valve can be controlled remotely

4.Wireless remote meter reading

5.Battery life is more than 6 years

6.It can also be uploaded manually

7. Low voltage automatically closes the valve for data protection

8. Power off and close the valve

9.step price can be set.

Deliver condition:

♦ Size:DN15-DN50 (DN50~DN300,please check bulk water meter)

♦ Body:Brass(with valve)/iron(without valve)

♦ Type:Dry dial/wet dial(standard)

♦ Max work pressure:PN16.

♦ Protection class:IP68

♦ Protocol: LORA

♦ Frequency: 470-510MHZ 868-915MHZ

♦ Battery: 6-7years

♦ Pressure loss:≤0.063Mpa

♦ Water temperature:T30,T90

♦ Standards:ISO4064.

♦ Certificate:MID

♦ Working mode: Class A

♦ Software:free for clients

♦ Composition:LoRa water meter,Collector,concentrator,Network servrt.

Please check our LoRa water meter solution.

Please check the attachment for more information：

Application Range

1.Household

2.Dormitory

3.Hotel

4.Residential property

5.Apartment

6.Warehouse

7.bulk size used for irrigation,water resources management,Industrial production,Garden management.

Technical Specification

Size	Flow range		Q3	Q4	Q2	Q1	Min. reading	Max. reading
Size	Q3/Q1	Q2/Q1	m3/h				m3
DN15	80	1.6	2.5	3.125	0.05	0.03125	0.0001	99999
DN20	80	1.6	4.0	5.0	0.08	0.05	0.0001	99999
DN25	80	1.6	6.3	7.875	0.126	0.07875	0.0001	99999
DN32	80	1.6	10	12.5	0.2	0.125	0.0001	99999
DN50	80	1.6	25	31.25	0.5	0.3125	0.0001	99999
