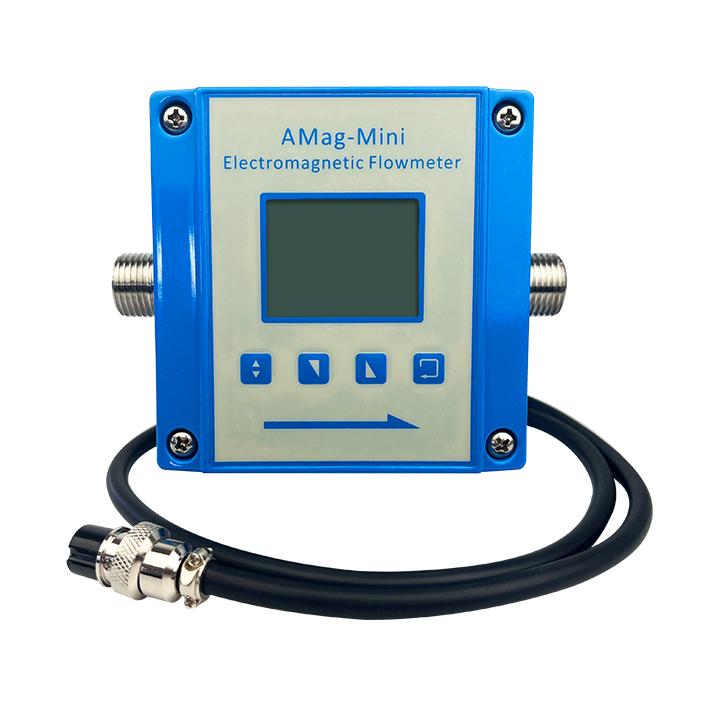

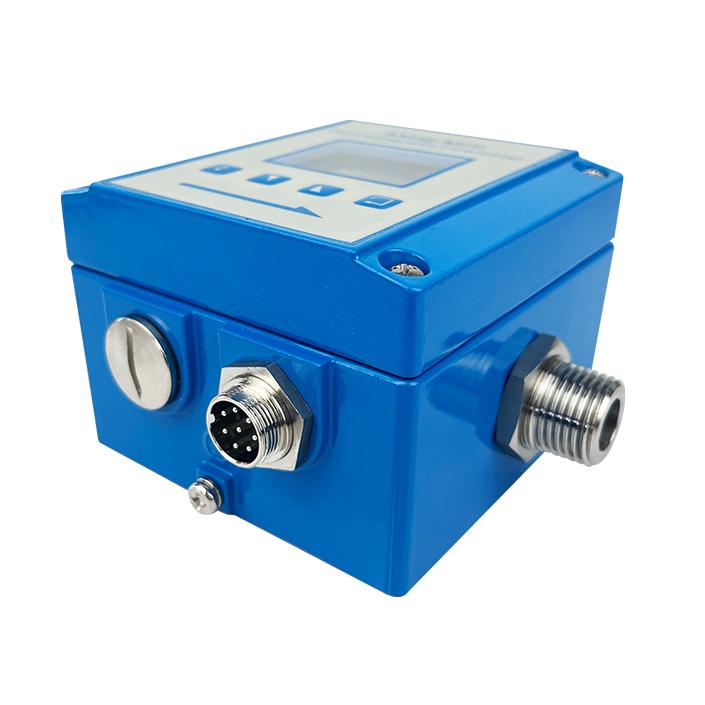

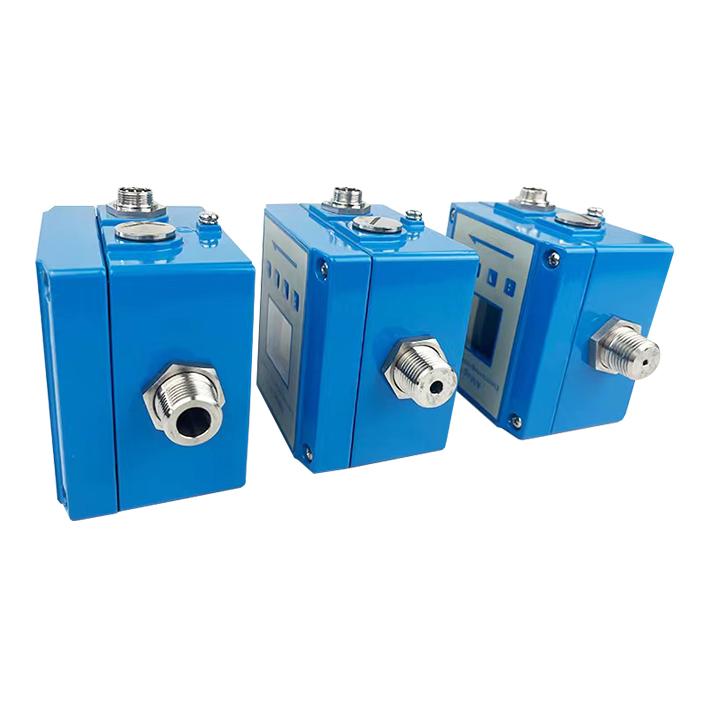

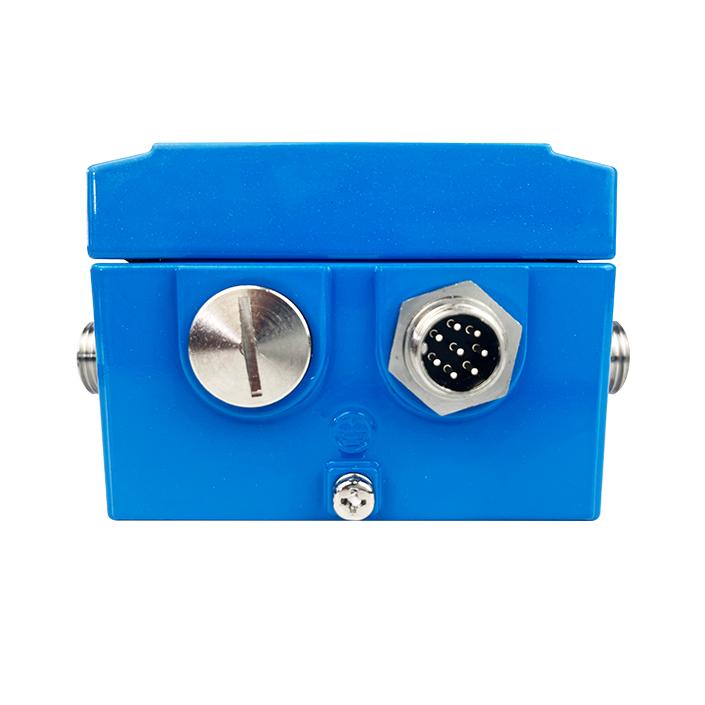

Low Flow electromagnetic flow meter

Low Flow electromagnetic flow meter has the characteristics of low measurement flow rate and wide range ratio. It is widely used in chemical industry, environmental protection, sugar making, pharmacy, food, irrigation and other fields. It can accurately measure various conductive fluids such as acid, alkali, salt solution, water, syrup, milk, pharmaceutical solution and various beverages.

Tell:WhatsApp:+86 18603780816
Product Description

Fuction and advantage:

LCD display: cumulative flow, instantaneous flow and flow rate. 100%. Alarm information, etc
Compact design, low-cost Low flow electromagnetic flowmeter;
Suitable for liquids with conductivity above 10us / cm;
Easy to install and do not need to be maintained;
The minimum flow can be as low as 5L / h;
Provide an optional integrated temperature sensor to display the medium temperature;
Counter with two -way measurement and independent counting;
Intelligent air traffic control detection and judgment;
Peek liners and optional EPDM seals are available for hygienic measurements;
No moving parts and no mechanical wear;
Thread or Tri-clamp connection, easy to install and disassemble;
Easy to operate and provide various outputs;
DC24V power supply, optional with or without display screen.

Application Range

1.Chemical industry

2.Sugar making

3.Pharmacy

4.Acid, alkali, salt solution

5.Syrup, milk, pharmaceutical solution

6.water

Technical Specification

Nominal diameter:DN3~DN20

Accuracy: ±0.2%/±0.3%/±0.5% (optional)
Measurement range: 0.01m/s~10m/s customized
Conductivity of medium: more than 10μS/cm
Temperature measured can be added(optional)
Nominal pressure: 1.6MPa/1.0MPa
Protection grade: IP65/IP67 (optional)
Electrode material: SS316L, HC, Ti, Ta
Lining material: PEEK
Connection:thread(SS304/SS316L/PVDF),flang,Tri-clamp
Process Temperature:-20℃~90℃
Ambient temperature: -10℃~60℃
Body materials:aluminium alloy or stainless steel
Power supply:24VDC
Signal output: MODBUS RTU,Analog 4mA-20mA, 0Hz~ 5 KHz frequency
Communication: RS485, RS232, MODBUS RTU, HART, PROFIBUS-DP (OPTIONAL)
Flow range for different szie:

Diameter

Flow range

DN 3

5L/h~100L/h

DN 6

30L/h~400L/h

DN 8

60L/h~700L/h

DN 10

90L/h~1000L/h

DN 12

50L/h~1500L/h

DN 15

190L/h~2000L/h

DN 20

500L/h~5000L/h

Flow rate:0.5m/s~5m/s.Accuracy basis on ±0.5%
