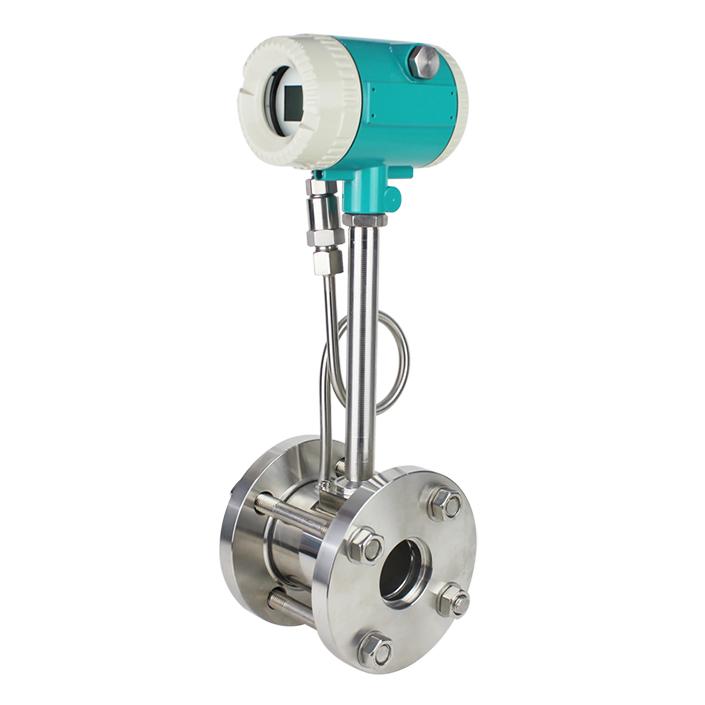

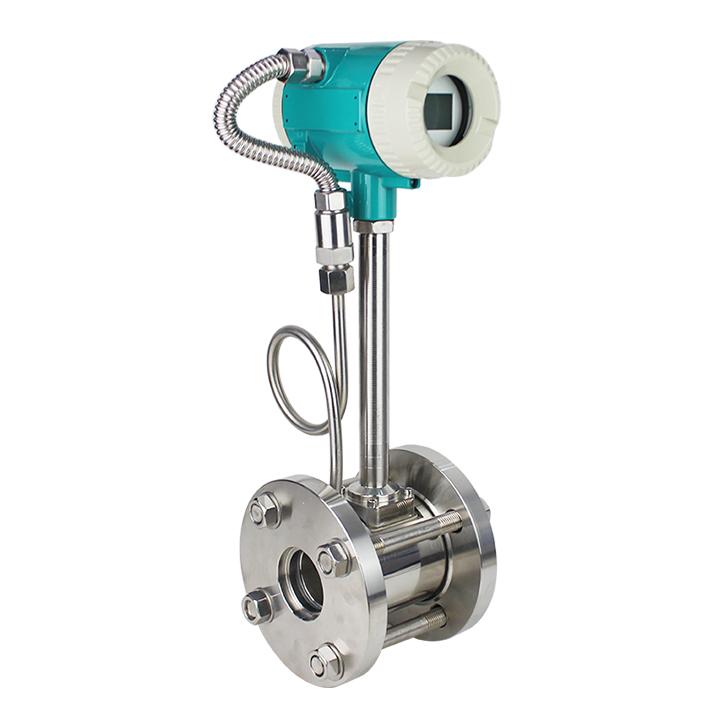

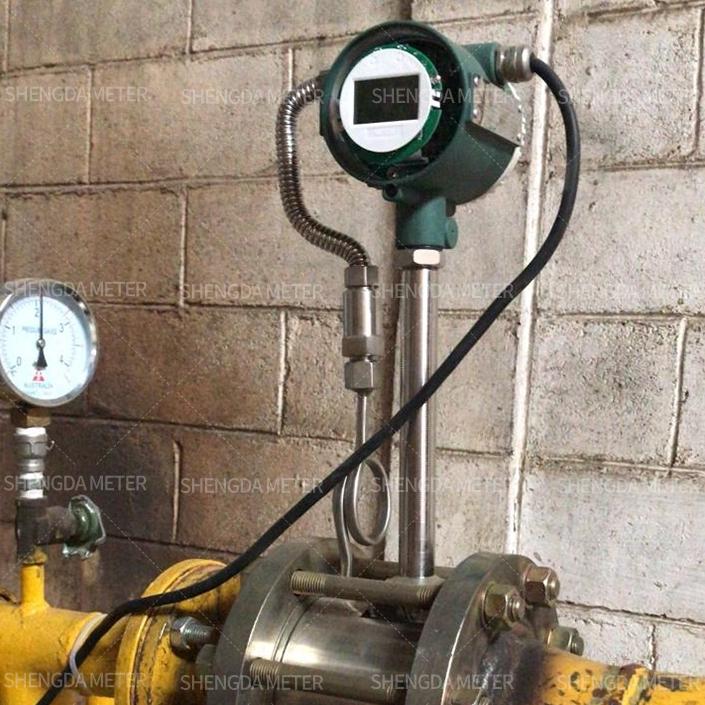

Vortex steam flow meter|Vortex gas flow meter|Air flow meter

Vortex flowmeter is mainly used for flow measurement of medium fluid in industrial pipeline, such as gas, liquid, steam and other media. It is characterized by small pressure loss, large range and high precision.It has analog standard signal and digital pulse signal output, which is easy to be used with digital systems such as computers. It is an ideal flow instrument.

Tell:WhatsApp:+86 18603780816
Product Description
Characteristic
1.The utility model has the advantages of simple and firm structure, no movable parts, high reliability and long-term operation.
2.Simple installation and convenient maintenance.
3.The detection sensor does not directly contact the measured medium, which has stable performance and long service life.
4.The output flow is proportional to the pulse signal, with high precision.
5.The measurement range is wide, and the range ratio can reach 1:10.
6.The pressure loss is small and the operation cost is low, which is more energy-saving.
7.It has a wide range of applications, and the flow of steam, gas and liquid can be measured.

Vortex flowmeter is mainly used for flow measurement of medium fluid in industrial pipeline, such as gas, liquid, steam and other media.

Technical data

Measuring medium: gas, liquid and steam
Connection mode: flange clamping type, flange type and plug-in type
Flange standard: GB / DIN / ANSI / JIS
Measure the temperature and pressure at the same time
Accuracy: liquid 0.5% 1.0% gas 1.5% 1.0%
Temperature of measured medium: - 40 ℃ ~ 350 ℃
Output and communication: pulse, 4 ~ 20 mA, RS-485, Hart
Ambient temperature of instrument: - 25 ℃ ~ + 55 ℃
Humidity: 5 ~ 90% Rh50 ℃
Material: stainless steel 304 316L
Power supply: vdc24v, 3.6V VDC, 220VAC
Explosion proof grade: intrinsically safe exdiibt6, protection grade: IP65.

Application Range

Petroleum

Chemical industry

Metallurgy

Gas,Steam

Technical Specification
DN/mm Flow Rate Range(m³/h)
Liquid Gas Steam
DN25 1-12 9-80 9-60
DN40 3-40 18-180 20-200
DN50 4-50 30-300 32-320
DN65 8-100 46-460 55-540
DN80 13-130 70-700 81-810
DN100 20-200 110-1100 130-1300
DN125 30-300 150-1500 170-1700
DN150 50-500 200-2000 290-2900
DN200 80-800 400-4000 550-5500
DN250 130-1400 600-6000 800-8000
DN300 200-2000 1000-10000 1150-11500
