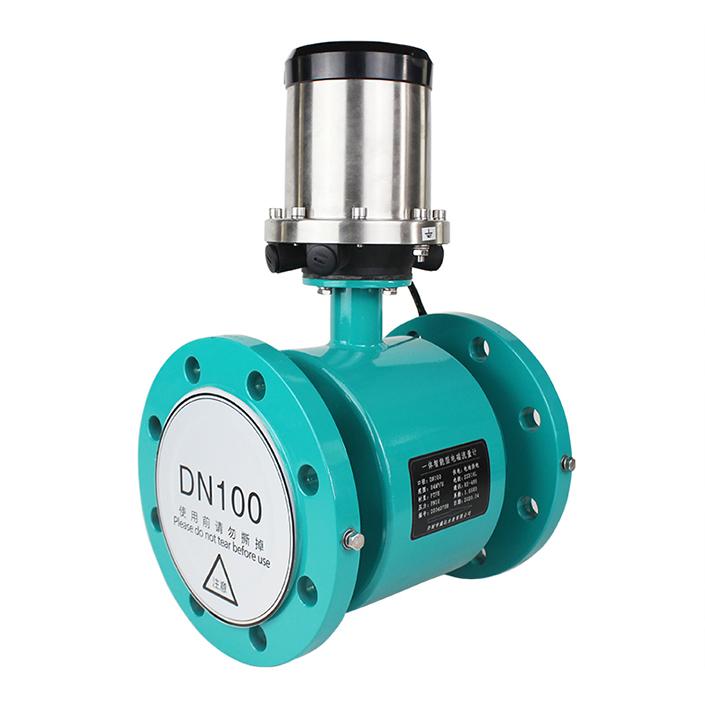

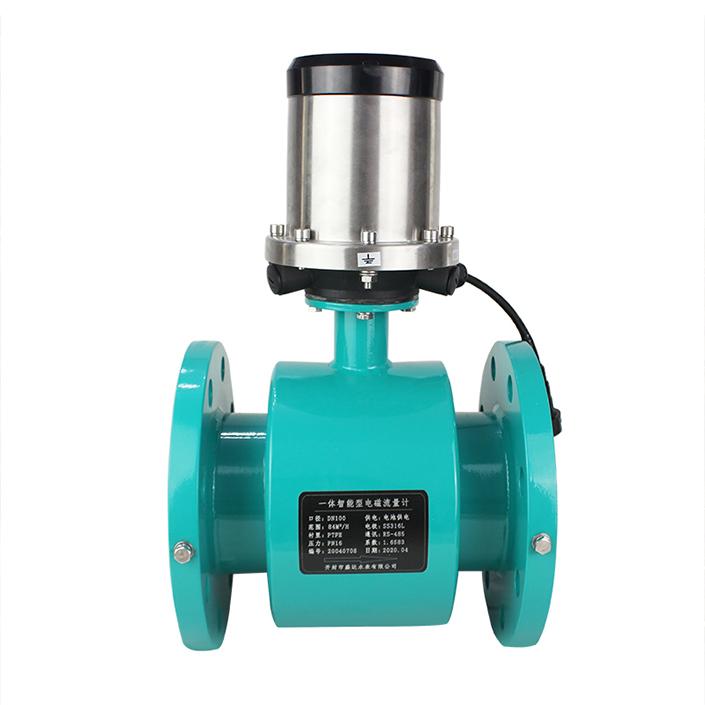

Battery Operated magnetic flowmeter

Lithium battery powered electromagnetic flowmeter is mainly used for water and wastewater measurement in remote areas. Our battery powered electromagnetic flowmeter supports wireless data transmission function. The transmission mode can be GPRS / 4G / nb-iot / Lora and other transmission modes, which can be controlled remotely.

Tell:WhatsApp:+86 18603780816
Product Description

Fuction

♦ Various wireless communication methods: The wireless communication methods such as GPRSS/4G/NB-IOT/LoRa.

♦ Measure instantaneous flow and cumulative flow

♦ Flow limit setting and Range setting.

♦ Lower limit of flow alarm.Flow limit alarm.Pipeline empty pipe alarm.Instrument failure alarm.

♦ Anti radio interference function

♦ Total flow is recorded in hours/minutes/seconds

♦ Output: pulse signal, output current signal.

♦ Two way measurement system, forward total amount, reverse total amount and difference total amount, can display positive and reverse flow.

♦ Remote transmission function: remote transmission of data and parameters at regular intervals, or manual trigger transmission.

Advantage:

1.Full digital quantity processing, strong anti-interference, reliable measurement, high precision.

2.Convenient operation: parameter configuration can be conveniently carried out through infrared remote control, magnetic pen, and LCD screen.

3.IP68 protection level, waterproof, moisture-proof, and anti-soaking.

4.Support Standard SIM card, users do not need to open the cover, which greatly guarantees the waterproof performance.

5.Support remote configuration parameters

6.The powerful server background processing function provides intuitive and convenient query, analysis, and alarm prompt functions for various application scenarios.

7.Support browser, mobile phone App and other methods to view data, remote configuration parameters, firmware upgrades, etc.

8.No movable parts and flow blocking parts in the pipeline, Almost no additional pressure loss in the measurement.

9.Measuring range can be modified according to needs of users.

10The measurement results are independent of physical parameters such as velocity distribution, fluid pressure, temperature, density and viscosity.

11.High definition backlit LCD display, all English menu operation, easy to use and simple to operate

Self inspection function.

Application Range

Clean water,Wastewater.

Sewage, chemical,Industry water.

Pulp and slurry

Leakage detection.

Irrigation.

Technical Specification

MAG Flow Meter

Types

Battery powered

Battery powered with GPRS/LoRa/4G/NB-Iot

Pressure measurement function

Pressure

1.0Mpa, 1.6Mpa,4.0Mpa,others

Size

DN15~DN600(1/2 inch~24 inch)

DN15~DN300(1/2 inch~12 inch)

power

Battery 3.6 VDC(working 3-6years)

Outputs

Std. 4 – 20 mA,0Hz~5kHz

Communication

MODBUS RS-485//Pulse/Frequency/ GPRSS/4G/NB-IOT/LoRa.

Liner

Neoprene, Polyurethane rubber, natural rubber,PFA, PTFE,etc,

Electrode Material

SS316L(standards), Hastelloy B/C,etc.

Accuracy

± 0.2%, ± 0.3%,±0.5%(flowrate<1m/s) .Optional

Measuring Range

0.5m/s~10m/s

Display Unit

Standard Unit in m³, Litre

Process Temperature

0°C~80°C

Protection Class

IP 65,IP67,IP68.Optional

Flow Tube Material

SS316,SS304(Optional)

Construction Material

Mild steel/stainless steel
