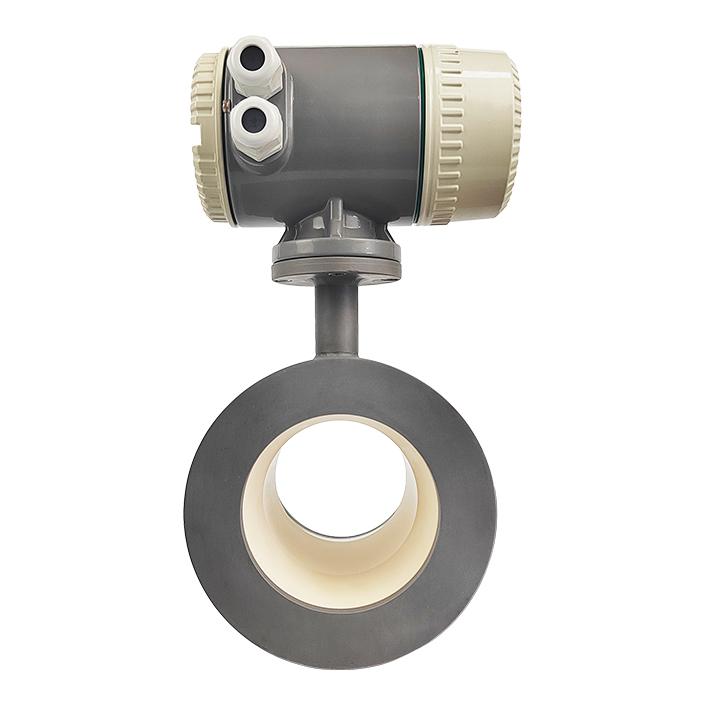

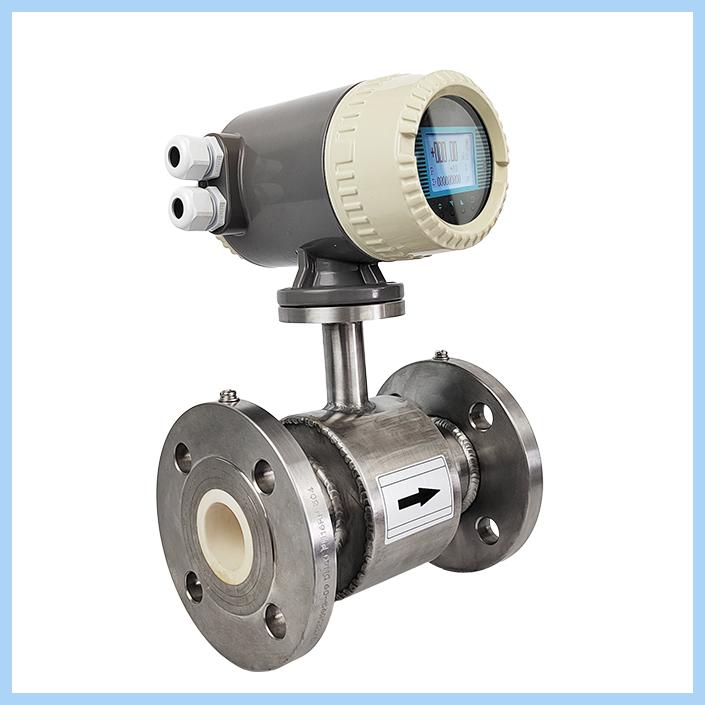

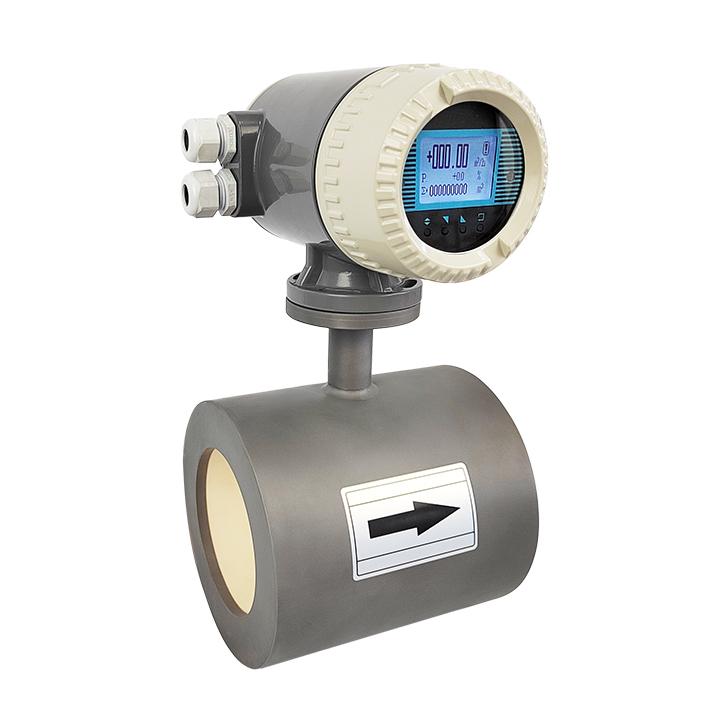

The ceramic lined magnetic flow meter is different from the ordinary magnetic flow meter. It has the advantages that the ordinary electromagnetic flow meter does not have, such as high temperature resistance, smooth internal surface, and easy disinfection. Suitable for acid, alkali, high temperature liquid, high viscosity, even high solid content slurry and many other corrosive media.
Advantage:
♦ High hardness, excellent wear resistance (more than 10 times of polyurethane rubber)
♦ High smoothness, suitable for slurry measurement
♦ Good pressure resistance,high pressure flowmeter
♦ Excellent heat resistance and cold and hot shock performance, capable of measuring liquid at 180 ° C
♦ Excellent corrosion resistance, smoothness, suitable for acid, alkali, high viscosity, even high solid content of slurry and many other corrosive media.
♦ Negative pressure resistant, customizable capacitive electromagnetic flowmeter
Fuction：
♦ Automatic control system through communication cable or wireless mode(LORAWAN/4G/NB-IOT/LoRa.)
♦ Measure instantaneous flow and cumulative flow
♦ Flow limit setting and flow Range setting.
♦ Lower limit of flow alarm,Flow limit alarm,Pipeline empty pipe alarm,Instrument failure alarm.
♦ Anti radio interference function
♦ Total flow is recorded in hours/minutes/seconds
♦ Output: pulse signal, output current signal.
♦ Two way measurement system, forward total amount, reverse total amount and difference total amount, can display positive and reverse flow.
♦ Remote transmission function: remote transmission of data and parameters at regular intervals, or manual trigger transmission.
1.Measurement and control of food hygiene filling
2.Syrup, corn syrup, beverages and other fluids with high viscosity
3.Pulp, cement slurry and pulp measurement
4.Coal water slurry measurement
|
Liner |
Max Teperature of liqud |
Chemical resistance |
Abrasion resistance |
Deformability |
Diameter |
| PTFE |
≤
180 ºC |
Good |
Medium |
Low |
3/8”
–24” |
|
PFA
+ steel
wire gauze |
≤
180 ºC |
Good |
Medium |
Low |
1/10”
–12” |
|
PP
+
steel wire gauze |
≤
90 ºC |
Medium |
Good |
Low |
1/10” –12” |
|
Hard rubber |
≤
80 ºC |
Low | Low |
Low |
1”
–120” |
|
Neoprene |
≤
80 ºC |
Low | Good |
Low |
1”
–120” |
|
PU |
≤
65 ºC |
Low | Good |
Low |
2” –64” |
|
Ceramic |
≤
180 ºC |
Great | Great | Great |
1/10”
–10” |
|
Nominal Dia (mm) |
DN 3~DN 250 |
|
Accuracy |
± 0.2%, ± 0.3%,±0.5% .Optional |
|
Measuring Range |
0.5m/s~10m/s |
|
Conductivity of medium |
more than 5μS/cm |
|
Display Unit |
Standard Unit in M3, Litre |
|
Process Temperature |
-20°C~180°C |
|
Process Pressure |
1.6MPa~4.0MPa,(Optional) |
|
Sensor Protection Class |
IP 65,IP67,IP68.Optional |
|
Vacuum degree |
0 mbar（0 psi） |
|
Material of Construction |
Carbon steel/SS304/SS316L |
|
Electrode Material |
Synthesis of Carbide and Alumina/ platinum iridium alloy and alumina |
|
Liner material |
99.8% high purity alumina ceramic |
|
Power Supply |
AC220 V/DC24 V/DC3.6V |
|
Output |
Std. 4 – 20 mA,0Hz~5kHz |
|
Installation |
Flang or Tri-Clamp |
|
Communication |
Std RS485,RS485 Modbus RTU (RS232,MODBUS,HART,PROFIBUS-DP,Optional) |
|
Display |
LCD Display |
|
Version |
Smart /Remote |
