Open Channel Ultrasonic Flow Meter

Open channel ultrasonic flow meter is an instrument used to measure the flow of liquid in channels discharged from non-standard culverts, channels, and openings.

Tell:WhatsApp:0086-16613890990
Product Description

Open channel ultrasonic flow meter can be widely used for flow measurement in sewage treatment inflow and discharge channels,chemical liquids in industrial and mining enterprises, wastewater discharge channels,water conservancy projects and agricultural irrigation channels, flood gates, etc.

Function:

Level measurement

4~20mA remote current output

Super large storage

SPDT Relay

LED display

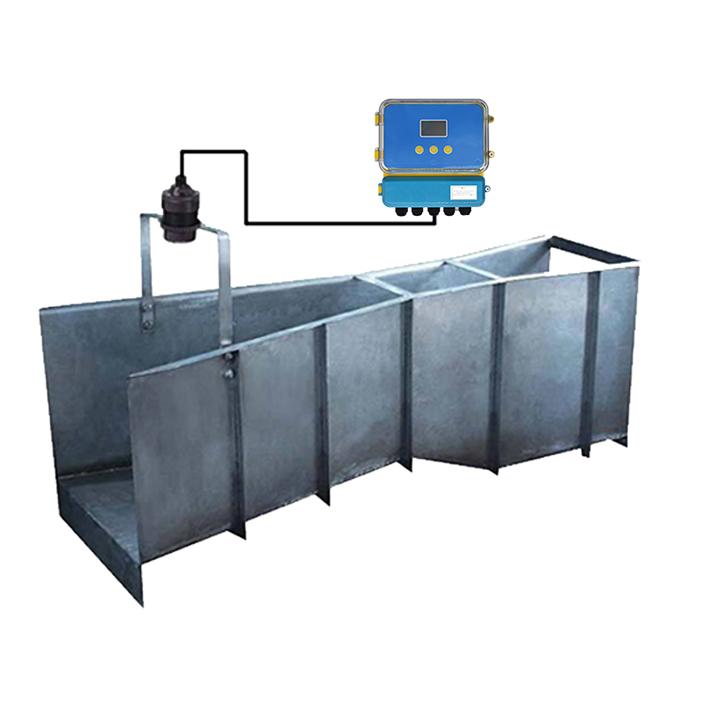

Open channel flow measurement of open channel.(For Triangle weir, Rectangle weir, Trapezoid weir, Parshall flume)

Work conditions:

Environment Temperature:LED:-20~+60℃,Probe:-20~+80C
Environment pressure:Standard atmospheric pressure
Environment humidity:<90%RH.Non-condensing

Process temperature:-20~80℃;

Application Range

Sewage treatment

Chemical liquids in industrial

Mining enterprises

Wastewater discharge channels

Water conservancy projects

Agricultural irrigation channels

Flood gates, etc.


Technical Specification

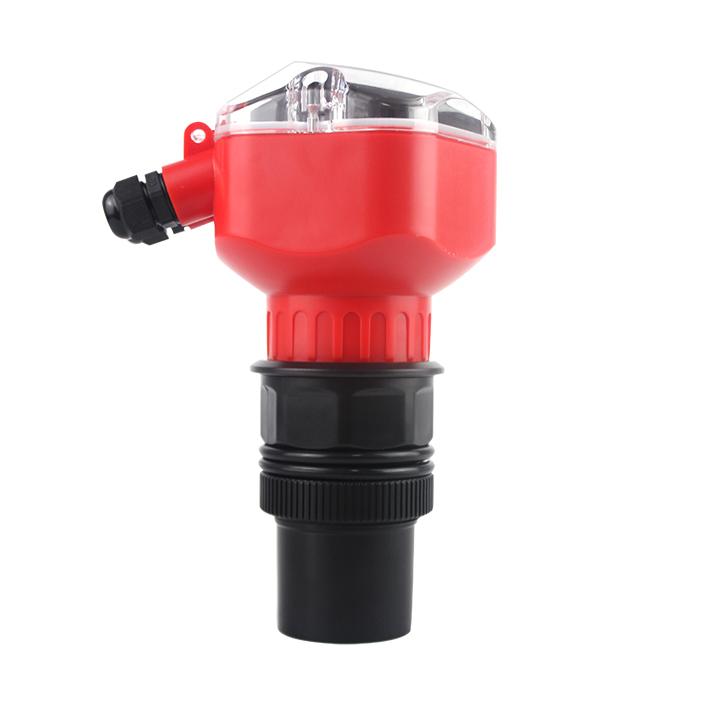

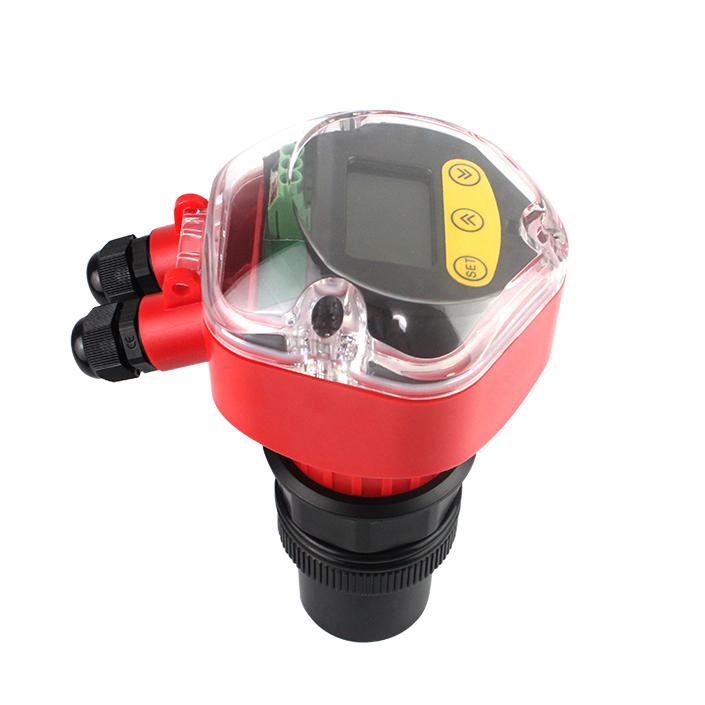

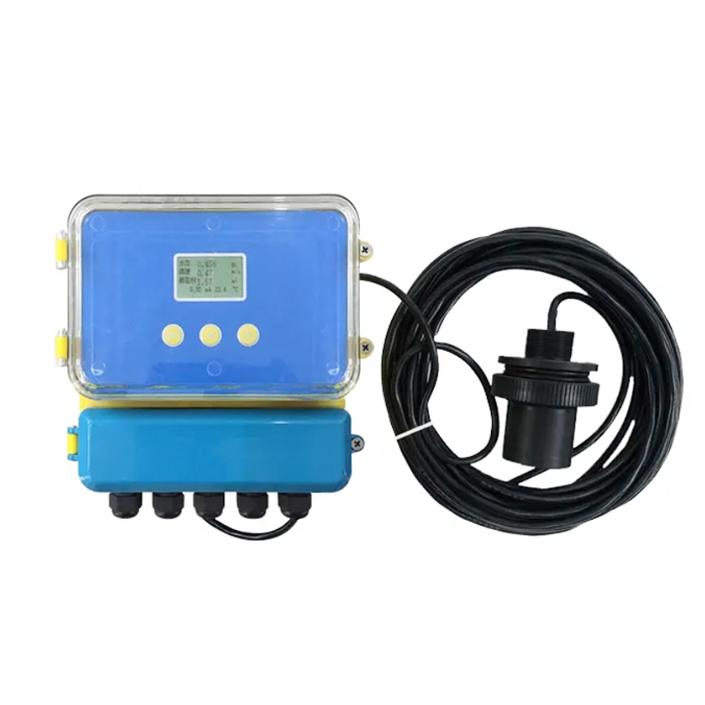

  Integrate type Split type
Measuring range 0.1l/s~99999.99 m³/h
Cumulative Flow biggest:4290000000.00 m³
Max range for level 3m
Accuracy for level 0.5%
Accuracy for Flow Standard weir:1~5%
channels Non-standard weir:10~30%.
Resolution 3mm or 0.1%(bigger)
Analog output Four-wire system)4~20mA/750 Ω load
Delay output AC 220V/ 8A 0r DC 24V/ 5A
Power supply Standard:24VDC 100mA: optional:220VAC+15% 50Hz.
(optional)12VDC、battery、solar
Communication Optional:485,232,MODBUS protocol
Protection Grade LED:IP67 Probe: IP68 LED:IP65,probe:IP68
Cable Probe No Standard:10m,The longest:100m
Probe installation M48x2mm thread + matching nuts
Probe Material Standard: ABS
Teflon material in corrosive environment
