Electromagnetic flow meter

Electromagnetic flow meter is used to measure conductivity greater than 5 μS/cm volume flow of conductive liquid. collected data through AMI/AMR systems,

Tell:WhatsApp:0086-16613890990
Product Description

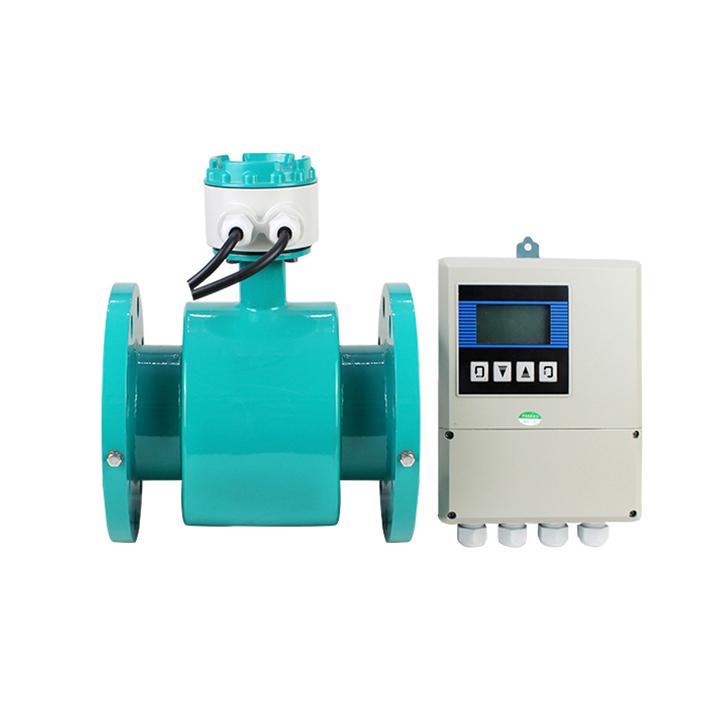

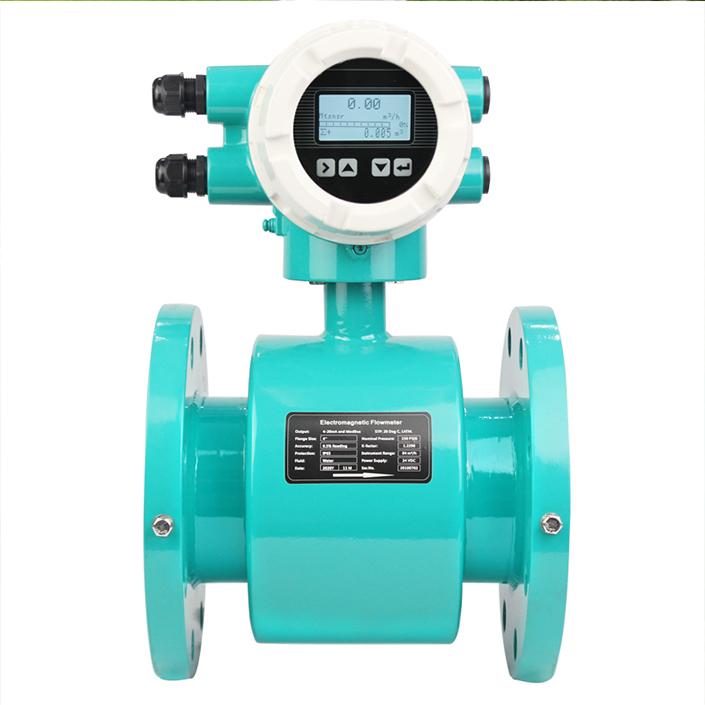

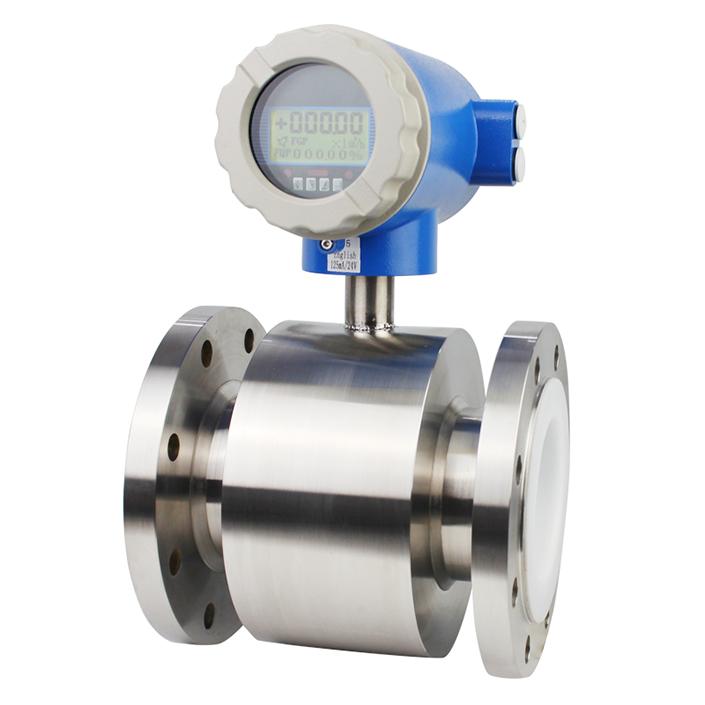

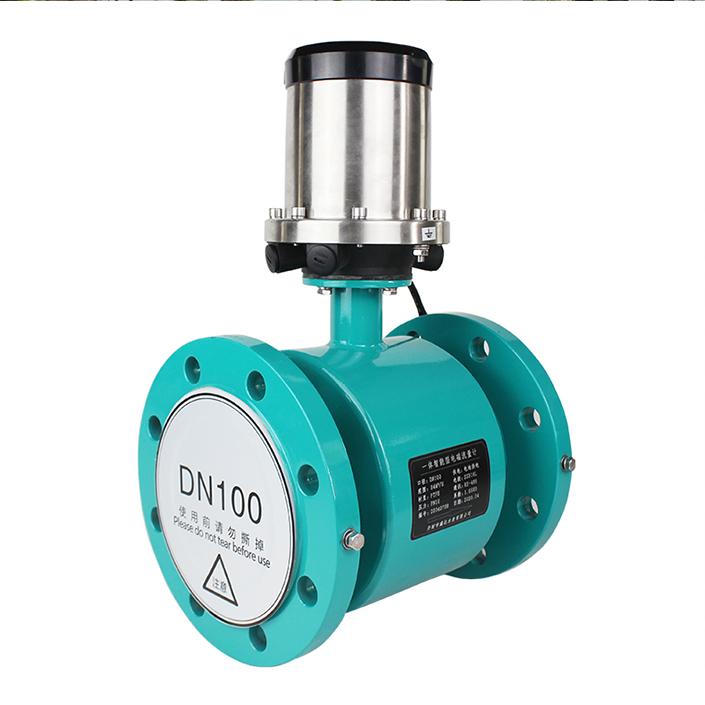

Shengda specialized in producing electromagnetic flow meter,the electromagnetic flow meter types contains:stainless steel electromagnetic flow meter,carbon steel electromagnetic flow meter,smart electromagnetic flow meter , plug in electromagnetic flow meter, battery operated electromagnetic flow meter and sanitary flow meter.




Fuction

♦ Measure instantaneous flow and cumulative flow.Two way measurement system, measure forward total amount, reverse total amount.

♦ Lower limit of flow alarm,flow limit alarm,pipeline empty pipe alarm,instrument failure alarm.

♦ Flow limit setting and flow Range setting

♦ Anti radio interference function

♦ Total flow is recorded in hours/minutes/seconds

♦ Output: pulse signal, output current signal.

♦ Automatic control system through communication cable or wireless mode LoRa,LoRaWAN,NB-IOT,GPRS,4G.

Advantage:

1.Full digital quantity processing, strong anti-interference, reliable measurement, high precision, flow measurement range up to 150:1

2.LCD display, convenient parameter setting and reliable programming.

3.No movable parts and flow blocking parts in the pipeline, almost no additional pressure loss in the measurement.

4.Measuring range can be modified according to needs of users.

5.The measurement results are not affected by flow rate, fluid pressure, temperature, density and viscosity.

6.High definition backlit LCD display, all English menu operation, easy to use and simple to operate

Self inspection function.

Please check the attachment for more information:

Application Range

Water supply and drainage projects

Paper pulp and black liquor in the paper industry

Ore pulp in the non-ferrous metallurgical industry

coal slurry in the coal preparation plant

Strong corrosive liquid in the chemical industry

Iron and steel industry

Pharmaceutical,Food  industry

Technical Specification

Nominal Dia (mm)

DN 15~DN 3000

Style

Integral/Remote

Accuracy

± 0.3%,±0.5%(flowrate<1m/s) .Optional

Measuring Range

0.5m/s~10m/s

Mounting

Integral/wall mounting

Conductivity of medium

more than 5μS/cm

Display Unit

Standard Unit in M3, Litre

Process Temperature

-20°C~80°CIntegral type/-20°C~120°C Remote type

Process Pressure

0.6MPa~4.0MPa,(Optional)

Sensor Protection Class

IP 65,IP67,IP68.Optional

Flow Tube Material

SS316,SS304(Optional)

Material of Construction

CS/Stainless steel

Electrode Material

SS316L, Hastelloy B/C, Tantalum,Ti ,Platinum iridium alloy.etc.

Liner material

Polyurethane rubber, natural rubber,PFA, PTFE,ceramics.etc

Flange Standard

ANSI/DIN/GB/JIS

End Connection

Flange/ Plug in /Wafer

Power Supply

AC220 V/DC24 V/DC3.6V/Solar energy

Output

Std. 4 – 20 mA,0Hz~5kHz

Cable Length

Std 10 metersCustomizable

Installation

Inline Flange Type.

Communication

Std RS485,RS485 Modbus RTU

Display

LCD Display

Version

Smart /Remote
