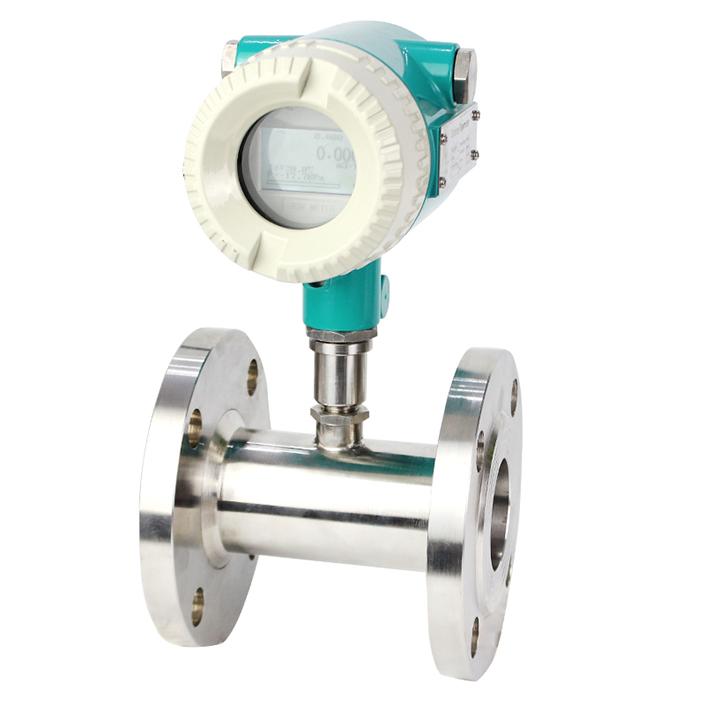

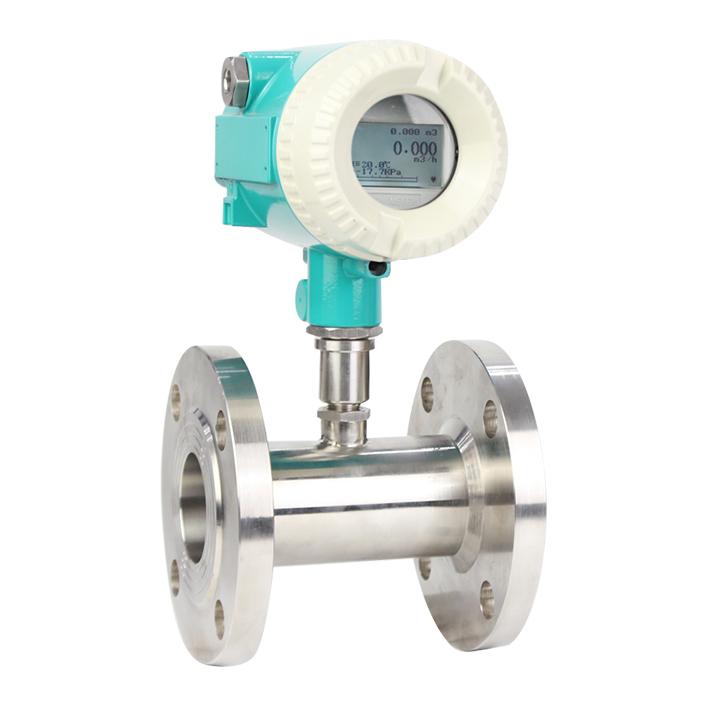

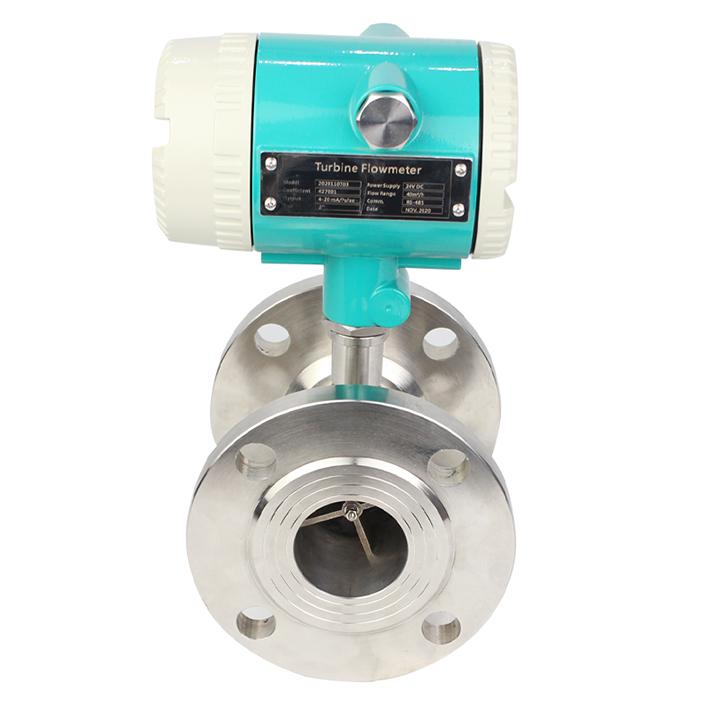

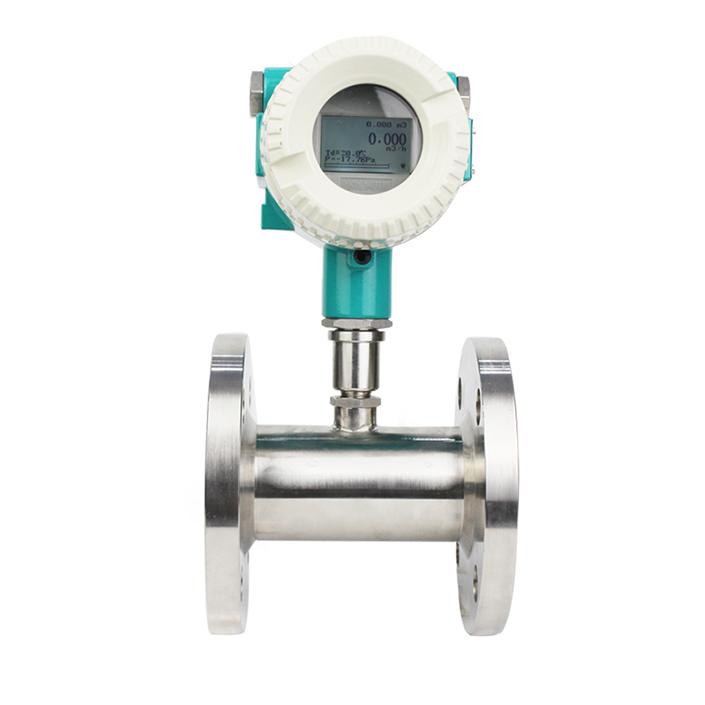

SDLWGY Turbine flow meter

Turbine flowmeter is widely used in petroleum, organic liquid, inorganic liquid, liquefied gas, natural gas, gas, etc. It is widely used in the transfer and gathering stations of liquefied petroleum gas, product oil and light crude oil, and in large crude oil transmission pipelines for trade settlement.

Tell：WhatsApp:0086-16613890990

Product Description

Function：

1. High accuracy, ± 1% R, ± 0.5% R, ± 0.2% R; (R refers to reading error);

2. Good repeatability, short-term repeatability can reach 0.05% ~ 0.2%

3. Local display, instantaneous flow and cumulative flow;

4. Output pulse frequency signal, 4-20mA, 485 communication;

5. High frequency signal can be obtained with strong signal resolution;

6. Range ratio: 1:20 for medium and large caliber and 1:10 for small caliber;

7. Compact and light structure, convenient installation and maintenance;

8. There are many types of special sensors, which can be designed as various special sensors according to the special needs of users,

9. Support the flow rate conversion display function, which is convenient for viewing the current flow rate on site;

10. Support 4-20mA output, pulse output and RS485 communication output.

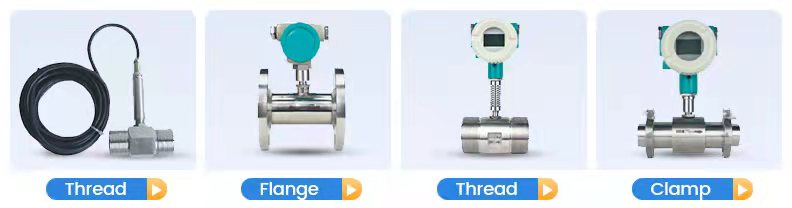

Connection Types：

The types connection of turbine flow meter produced by us are Thread，flange and clamped.the size is DN 2~DN 300

Application Range

1.Water treatment industry

2.Methanol, ethanol

3.Gasoline, diesel.

4.Petroleum, chemical and metallurgy

5.Papermaking and environmental protection

Technical Specification

Model	LWGY	LWBY	LWSY
Signal output	Pulse	4-20mA	Pulse/4-20mA
Powder	+24VDC±15%	+24VDC±15%	+24VDC±15%/DC24V
Accuracy	±0.5%/±1%/0.2%	±0.5%/±1%/0.2%	±0.5%/±1%/0.2%
Flow range	Standard	Standard	Standard/Extended range
communication	No	No	RS485
Body materials	SS316	SS316	SS316
Explosion proof grade	No	ExdllBT6/ExdllBT4	ExdllBT6/ExdllBT4
Protect Grade	IP60	IP65	IP65
Diameter	DN4~DN250	DN4~DN250	DN4~DN250
Materials temperature	-20℃~180℃	-20℃~180℃	-20℃~180℃
Connect type	Thread/flange/Clamp
