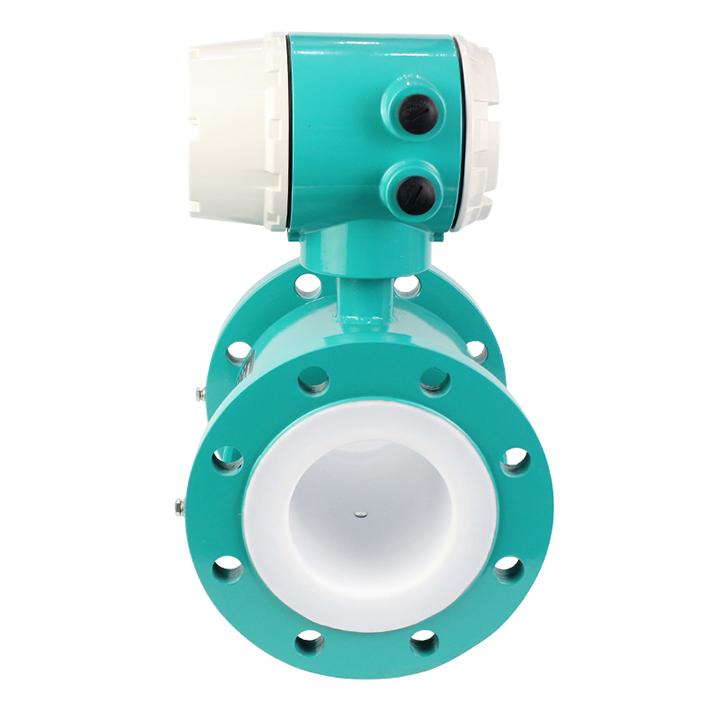

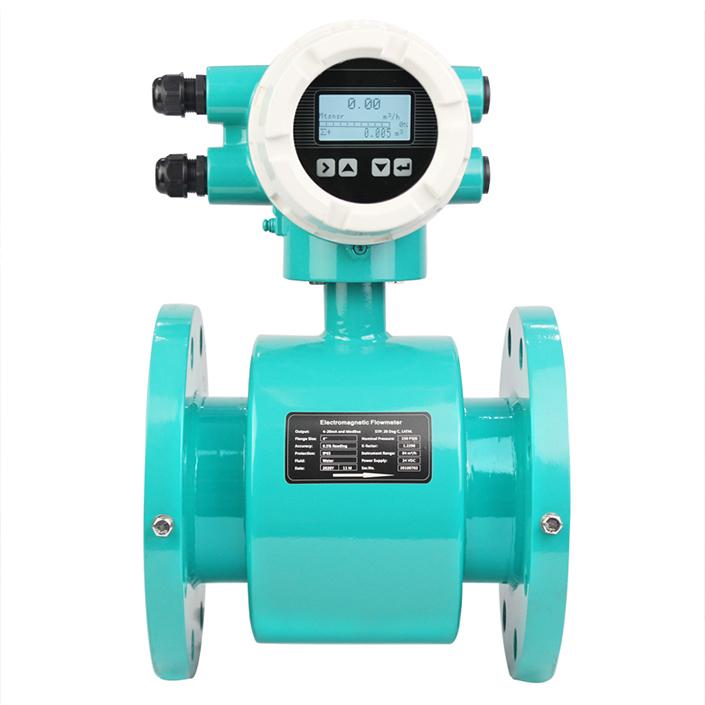

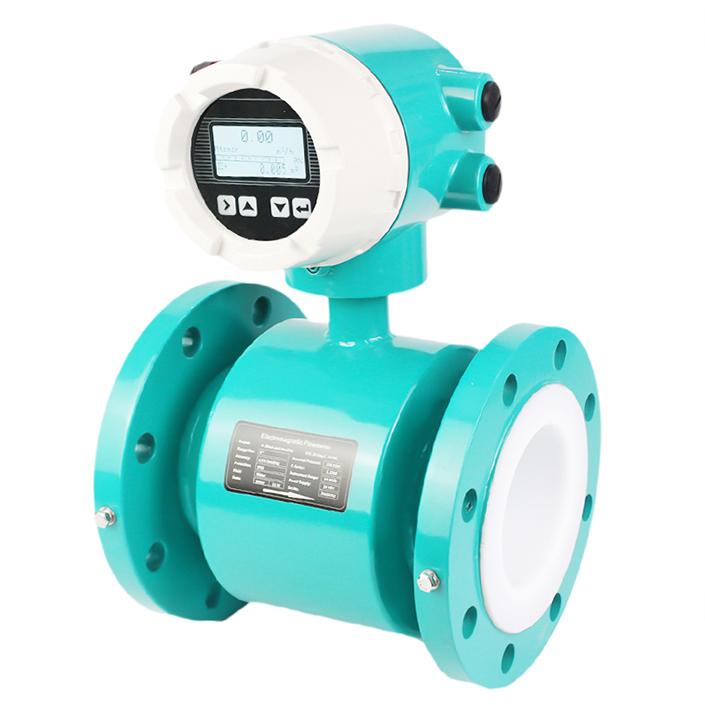

Mild steel electromagnetic flow meter is used to measure conductivity greater than 5 μS/cm volume flow of conductive liquid.Shengda water meter CO.,LTD are professional magnetic flow meter manufacturer in China.
Fuction：
1.Measure instantaneous flow,Measure the cumulative flow.
2.Flow limit and flow low Range setting
3.Lower limit of flow alarm,Flow limit alarm,Pipeline empty pipe alarm,Instrument failure alarm
4.Anti radio interference function
5.Total flow is recorded in hours/minutes/seconds
6.Output: pulse signal, output current signal.
7.Transmit the collected data to the operating system or automatic control system through communication cable or wireless mode(GPRS/4G/NB-IOT/LoRa/LoRaWAN.)
8.Two way measurement system, forward total amount, reverse total amount and difference total amount, can display positive and reverse flow.
Advantage:
♦ Full digital quantity processing, strong anti-interference, reliable measurement, high precision, flow measurement range up to 150:1
♦ Adopts 16 bit embedded microprocessor, LCD display, convenient parameter setting and reliable programming.
♦ No movable parts and flow blocking parts in the pipeline, Almost no additional pressure loss in the measurement.
♦ Measuring range can be modified according to users.
♦ The measurement results are independent of physical parameters such as velocity distribution, fluid pressure, temperature, density and viscosity.
♦ High definition backlit LCD display, all English menu operation, easy to use and simple to operate Self inspection function.
♦ Infrared handheld operator, 115khz communication rate, remote operation converter all functions (optional)
Sewage treatment,Wastewater.
Slurry, chemical sewage
Water purification and desalination.
Pulp
Drinking water,Irrigation.
Leakage detection.
Industry water.
|
Types |
Remote type electromagnetic flow meter |
Integrated type electromagnetic flow meter |
Battery powered with GPRS/LoRa/4G/NB-Iot |
Pressure measurement function |
|
|
Pressure |
0.6Mpa,1.0Mpa,1.6Mpa,4.0Mpa,others |
1.0Mpa, 1.6Mpa,4.0Mpa,others |
|||
|
Size |
DN15~DN3000(1/2 inch~10 feet) |
DN15~DN600 |
DN15~DN300(1/2 inch~12 inch) |
||
|
power |
24 VDC,220 VAC |
Battery 3.6 VDC(working 3-6years) |
|||
|
Outputs |
Std. 4 – 20 mA,0Hz~5kHz |
||||
|
Communication |
MODBUS RS-485//Pulse/Frequency |
||||
|
Liner |
Neoprene, Polyurethane rubber, natural rubber,PFA, PTFE,etc, |
||||
|
Electrode Material |
SS316L(standards), Hastelloy B/C,etc. |
||||
|
Accuracy |
± 0.2%, ± 0.3%,±0.5%(flowrate<1m/s) .Optional |
||||
|
Measuring Range |
0.5m/s~10m/s |
||||
|
Display Unit |
Standard Unit in m³, Litre |
||||
|
Process Temperature |
-20°C~160°C |
0°C~80°C |
|||
|
Protection Class |
IP 65,IP67,IP68.Optional |
||||
|
Flow Tube Material |
SS316,SS304(Optional) |
||||
|
Construction Material |
Carbon steel |
||||
|
Flange Standard |
ANSI/DIN/GB/JIS |
||||
|
Display |
LCD Display |
||||
|
Installation |
Inline Flange Type. |
||||
|
Version |
Smart/Remote |
||||
