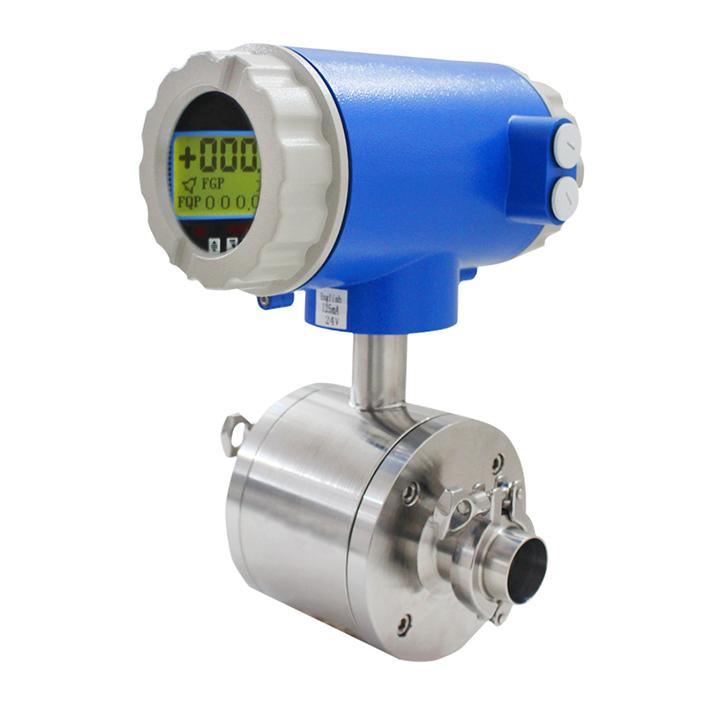

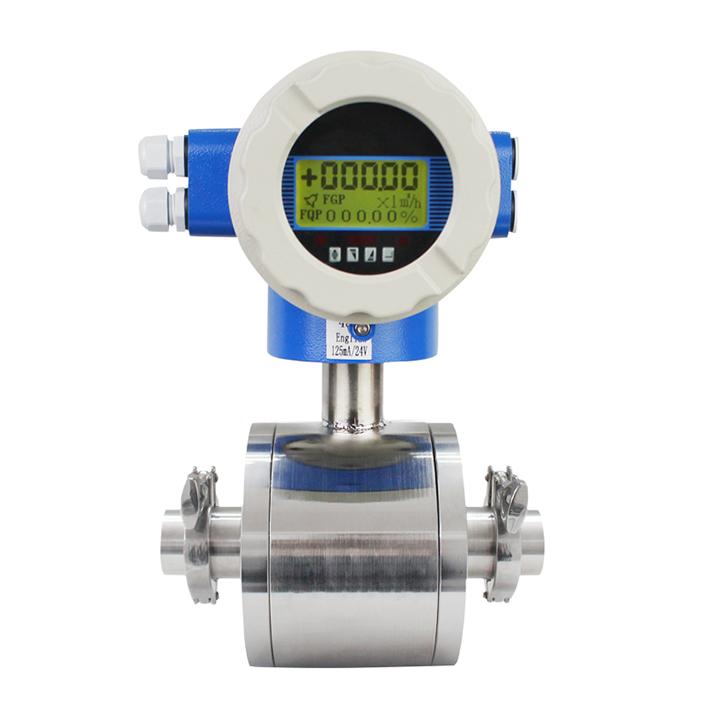

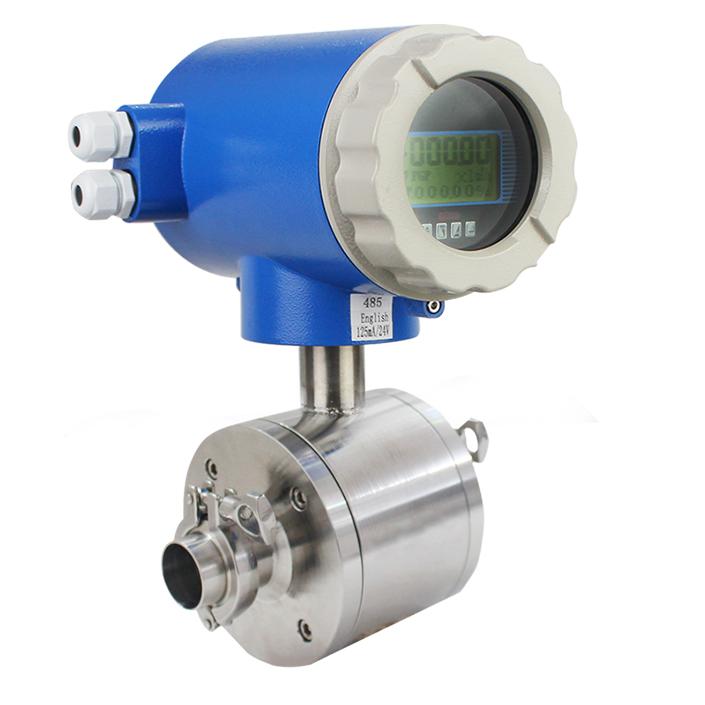

Sanitary Electromagnetic flow meter

The sanitary flowmeter adopts PTFE lining material to meet the hygienic requirements of the food industry. It adopts stainless steel structure and stainless steel clamp connection. It is convenient for quick disassembly and cleaning of electromagnetic flowmeter.

Tell:WhatsApp:+86 18603780816
Product Description


♦ Measure instantaneous flow and cumulative flow.

♦ Flow limit setting.Flow Range setting.

♦ Lower limit of flow alarm.Flow limit alarm.Anti radio interference function.Pipeline empty pipe alarm.

♦ Instrument failure alarm.

♦ Total flow is recorded in hours/minutes/seconds.

♦ Output: pulse signal, output current signal.

♦ Transmit the collected data to the operating system or automatic control system through communication cable or wireless mode.

♦ Two way measurement system, forward total amount, reverse total amount and difference total amount, can display positive and reverse flow.


1.Clean, sanitary and easy to clean.

2.Corrosion resistance, wide range of applications

3.Full digital quantity processing, strong anti-interference, reliable measurement, high precision.

4.LCD display, convenient parameter setting and reliable programming.

5.No movable parts and flow blocking parts in the pipeline, Almost no additional pressure loss in the measurement.

6.Measuring range can be modified according to needs of users.

7.The measurement results are independent of physical parameters such as velocity distribution, fluid pressure, temperature, density and viscosity.

8.High definition backlit LCD display, all English menu operation, easy to use and simple to operate

Self inspection function.

Application Range

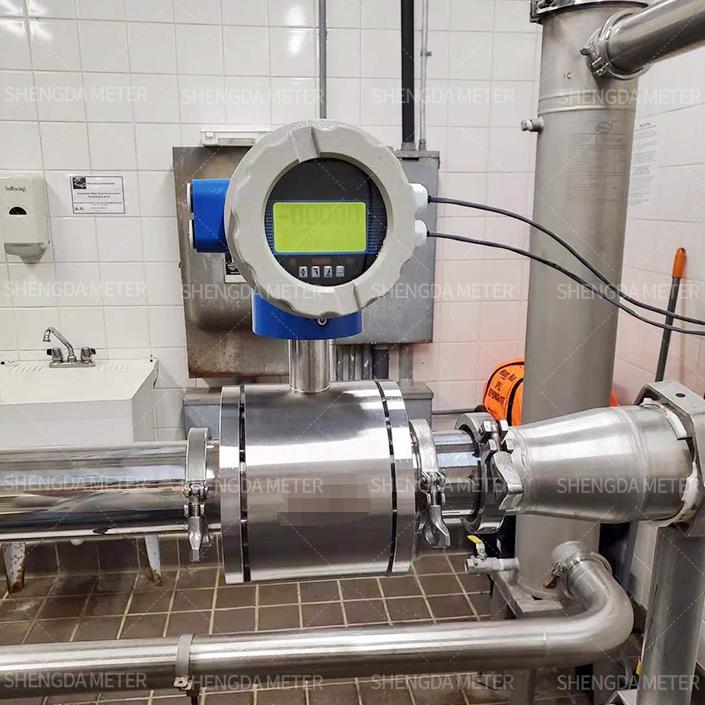

Food processing

pharmaceutical industry

Beverage industry

Clean drug cleaning solutions


Technical Specification
Nominal Dia (mm)
DN 15~DN 100
± 0.2%, ± 0.3%,±0.5%(flowrate<1m/s) .Optional
Measuring Range
Conductivity of medium
more than 5μS/cm
Display Unit
Standard Unit in M3, Litre
Process Temperature
Process Pressure
Sensor Protection Class
IP 65,IP67,IP68.Optional
Flow Tube Material
Material of Construction
Electrode Material
SS316L, Hastelloy B/C, Tantalum,Ti,Platinum iridium alloy.etc.
Liner material
Power Supply
AC220 V/DC24 V/DC3.6V
Std. 4 – 20 mA,0Hz~5kHz
Std RS485,RS485 Modbus RTU (RS232,MODBUS,HART,PROFIBUS-DP,Optional)
LCD Display
Smart /Remote
