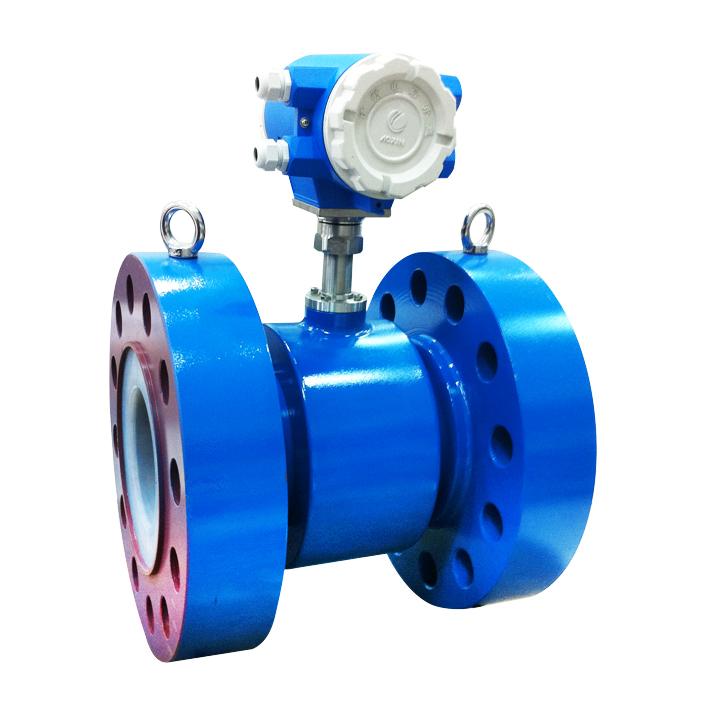

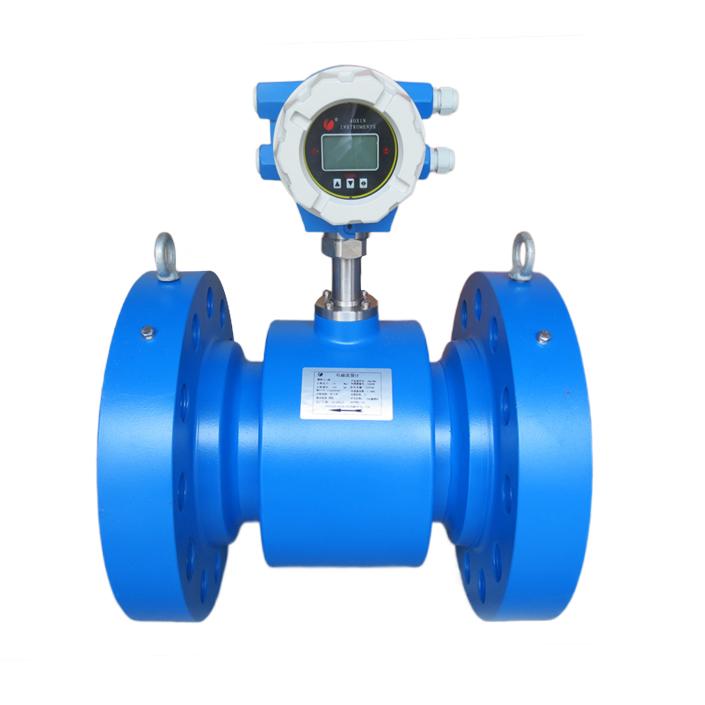

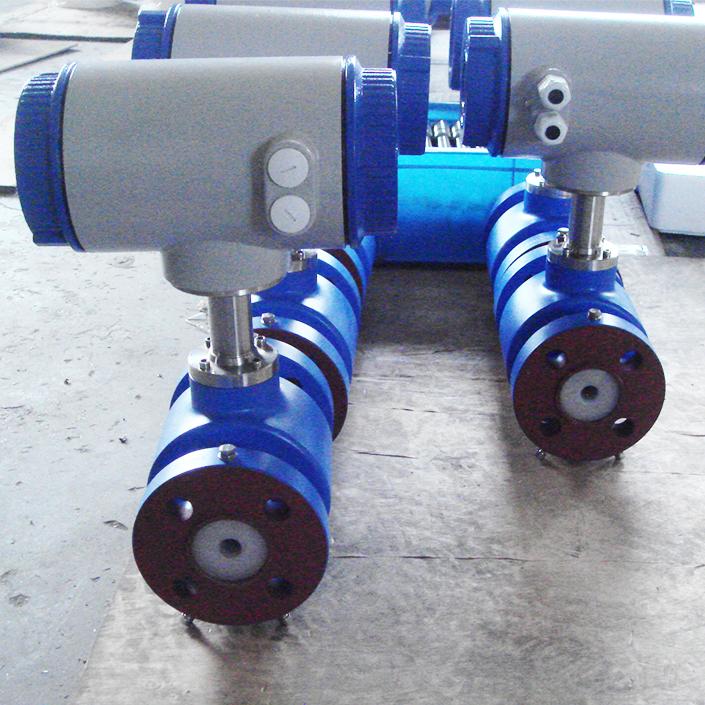

High presssure magnetic flowmeter

High pressure electromagnetic flowmeter is composed of high pressure electromagnetic flow sensor and converter produced by special process, which is specially used for volume measurement of mud, cement slurry and high-pressure water injection under high pressure conditions such as geology, oil exploration and oilfield system.

Tell：WhatsApp:0086-16613890990

Product Description

Function and advantages:

1. The sensor is equipped with grounding electrode to realize good grounding of the instrument.
2. High pressure, measuring pipe has no obstructing moving parts, no pressure loss, and low requirements for straight pipe section.
3. The instrument has good anti negative pressure capacity.
4. The measurement accuracy is not affected by changes in fluid density, viscosity, humidity, pressure and conductivity.
5. The intelligent converter can simultaneously display measurement data such as flow percentage, instantaneous flow and cumulative flow.
6. The converter of high pressure flowmeter has the functions of self diagnosis alarm output, empty load detection alarm output, flow upper and lower limit alarm, etc

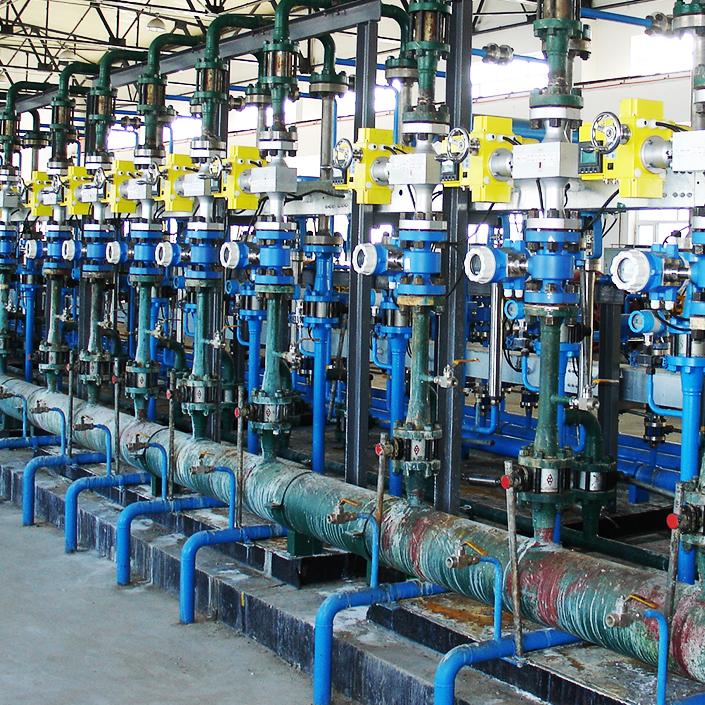

Application Range

1.Slurry and mud

2.Ilfield system

3.High-pressure water injection

4.Geology

5.Oil exploration

Technical Specification

Nominal Dia (mm)	DN 15~DN 100
Style	Integral/Remote
Accuracy	± 1%,±0.5% Optional
Measuring Range	0.3m/s~10m/s
Mounting	Integral/wall mounting
Conductivity of medium	more than 5μS/cm
Display Unit	Standard Unit in M3, Litre
Process Temperature	-20°C~80°C（compact type）/-20°C~120°C Remote type
Process Pressure	6.3~32Mpa
Material of Construction	CS/Stainless steel
Electrode Material	SS316L,Hb,Hc，Ti，Pt,Ta.etc.
Liner material	PFA、F46
Flange Standard	ANSI/DIN/GB/JIS
End Connection	Flange/ Wafer
Power Supply	AC220 V/DC24 V/DC3.6V/Solar energy
Output	Std. 4 – 20 mA,0Hz~5kHz
Cable Length	Std 10 meters（Customizable）
Installation	Inline Flange Type.
Communication	Std RS485,RS485 Modbus RTU
Display	LCD Display
Explosion proof grade	ExmbⅡT4
