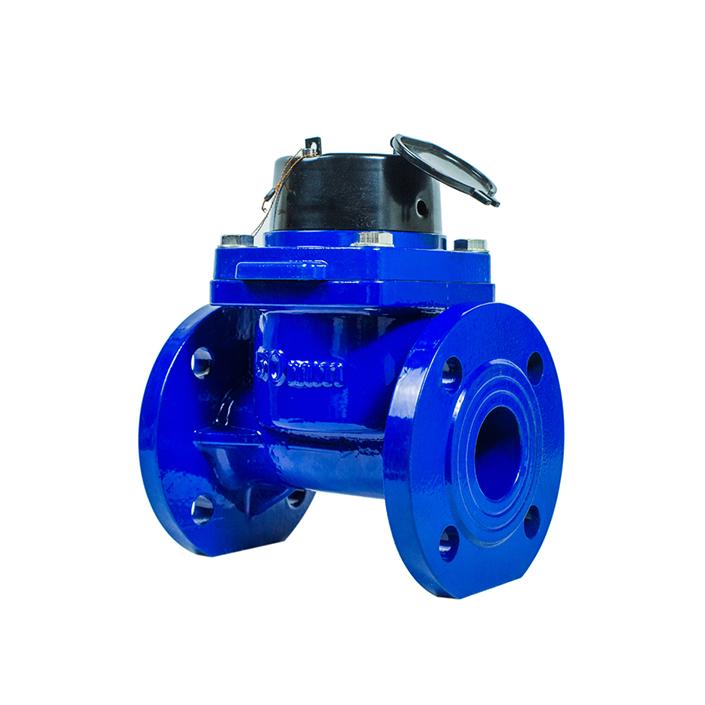

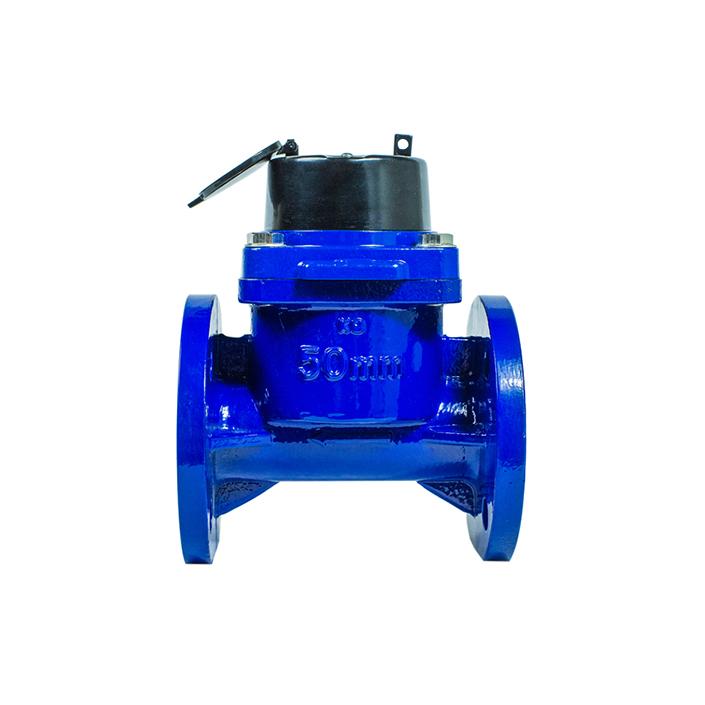

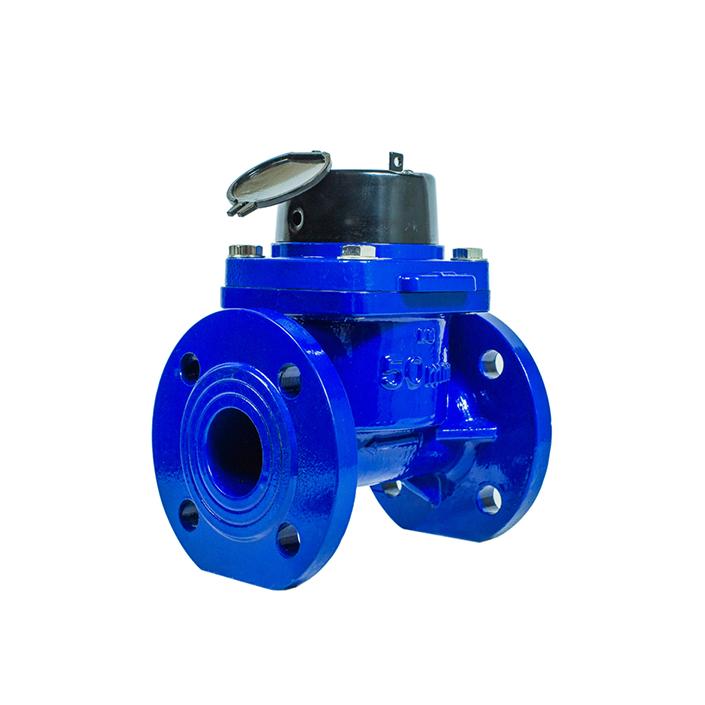

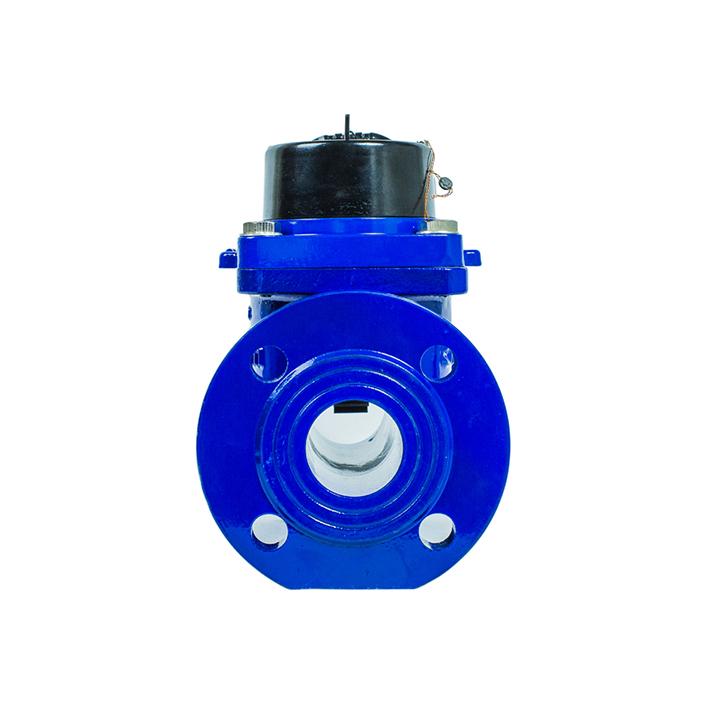

Irrigation water meter

Irrigation water meter is specially designed for irrigation system to provide the most accurate and reliable flow reading. For farmland irrigation produced by Shengda, the measurement accuracy can reach + / - 2% even for water with high impurity content.

Tell：WhatsApp:0086-16613890990

Product Description

Characteristics:

♦ Small transmission resistance, large flow capacity, anti blocking ability.

♦ Horizontal rotor, dry, magnetic coupling drive.

♦ The counter adopts vacuum sealing, anti condensation and atomization.

♦ Removable structure is adopted for easy installation and maintenance

♦ The measuring mechanism has strong universality.

♦ Remote transmission can be support.

Supplied condition：

Size:DN50~DN600

R:R25,R40

Material: Cast iron shell

Temperature grade: T30, T50, T90

Pressure class: MAP16, MAP10.MAP40

Pressure loss: △P63

Installation method:

1. Horizontal installation.

2. Additional water filter is required.

3. The water inlet / outlet of the water meter needs straight pipe section U10 / D5.

Please check our irrigation water meter solution.

Please check the attachment for more information：

Application Range

Water resources management

Agricultural irrigation

Garden management

Industrial production

Industrial automatic control and other industries

Technical Specification

Main technical parameters:

Model	DN	Metering grade	Common flow Q3	Maximum flow Q4	Boundary flow Q2	Minimum flow Q1	Minimum reading	Maximum reading
Model	DN	Metering grade	M3/h				M3
LXXG-50	2”	R20 (R25)	31.25	25	5	1.25	0.002	999,999
LXXG-65	2 1/2”		50	40	8	2	0.002	999,999
LXXG-80	3”		78.75	63	12.6	3.15	0.002	999,999
LXXG-100	4”		125	100	20	5	0.002	999,999
LXXG-125	5”		200	160	32	8	0.002	999,999
LXXG-150	6”		312.5	250	50	12.5	0.002	999,999
LXXG-200	8”		500	400	80	20	0.002	999,999
LXXG-250	10”		787.5	630	126	31.5	0.02	9,999,999
LXXG-300	12”		1250	1000	200	50	0.02	9,999,999
