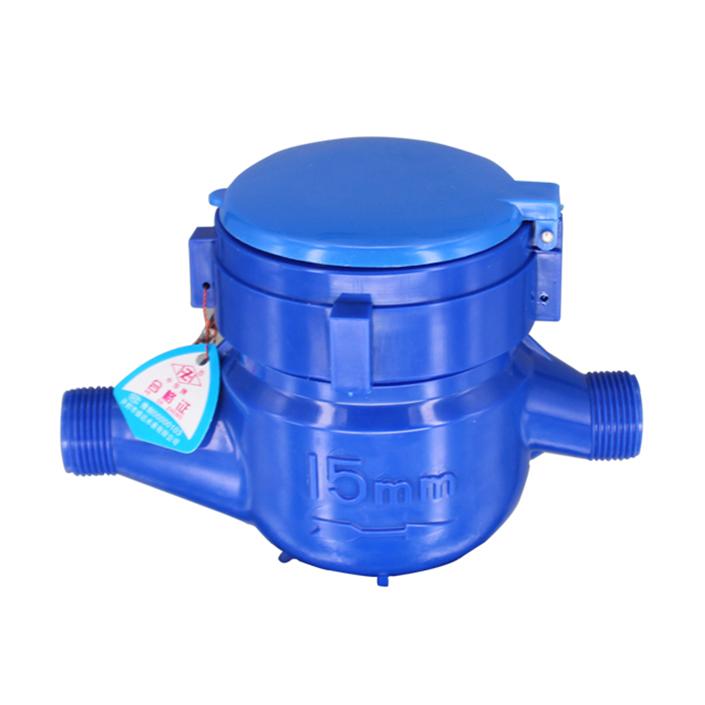

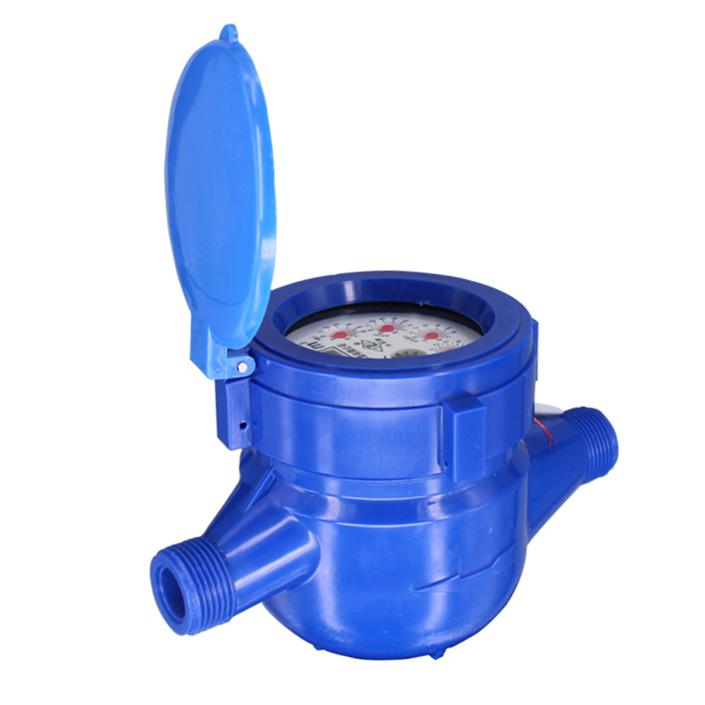

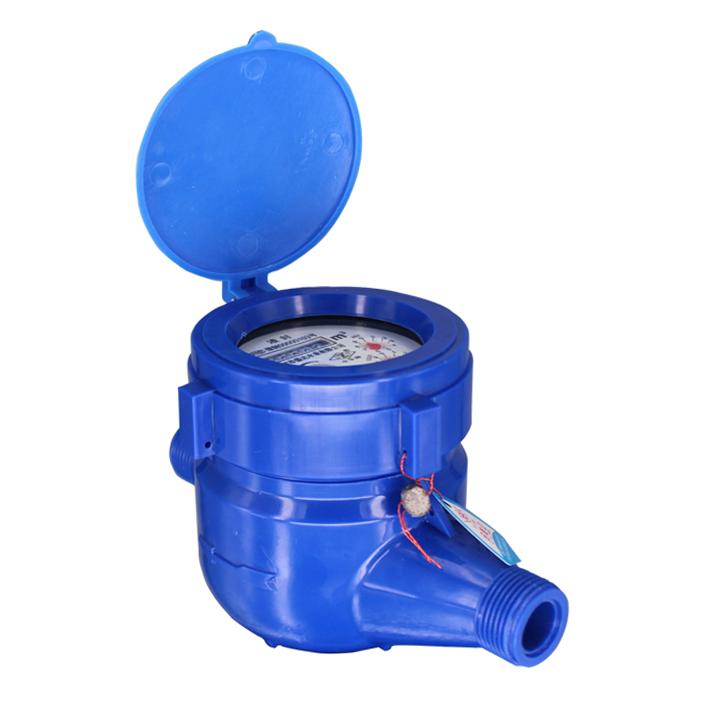

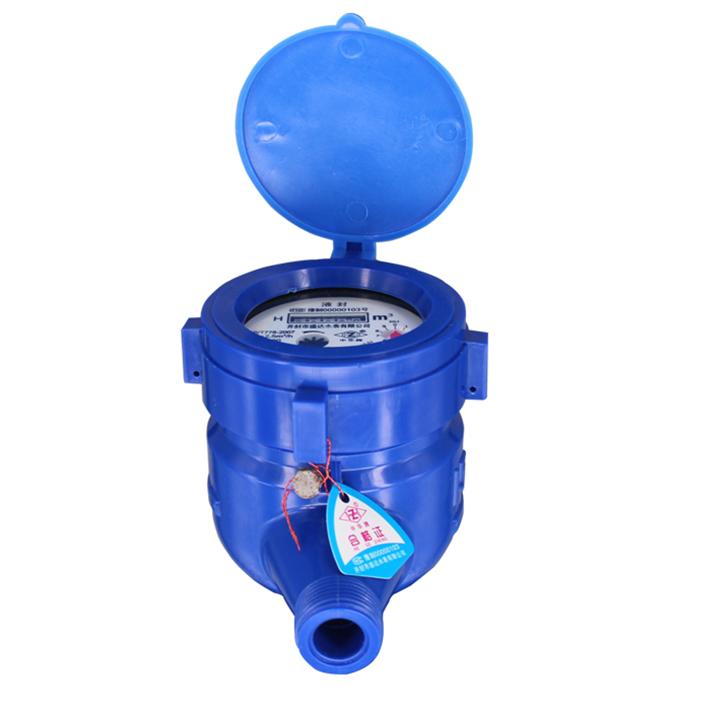

Plastic water meters not only have the functions and advantages of other water meters, but also have the advantages of safety and sanitation, stable and reliable performance, beautiful appearance and low price, which have won the favor of a large number of customers.
Characteristics:
♦ High toughness and aging resistance
♦ Hydrolysis resistance, impact resistance and creep resistance
♦ It can be used normally in different environments
♦ High and low temperature resistance, more frost burst resistance
♦ No scaling and long service life
♦ Support OEM
♦ Proven multi-jet flow meter design
♦ Antimagnetic, Antifreezing
♦ Vacuum sealed counter, keep clear in long term.
♦ ISO4064, Class B
♦ Remote transmission device can be added upon requestSupply condition：
Size:DN15-DN25
Body:ABS/Nylon(optional)
Type:Dry dial/wet dial(optional)
Max work pressure:PN16/PN10(optional)
Pressure loss:≤0.063Mpa
Water temperature:T30,T50(optional)
Standards:ISO4064.class B
R:R80/R100/(R=Q3/Q1)(optional)
Install:Horizontal
1.Household
2.Dormitory
3.Hotel
4.Residential property
5.Apartment
6.Warehouse
|
Diameter (mm) |
Class |
Q4 (m³/h) |
Q3 (m³/h) |
Q2 (m³/h) |
Q1 (m³/h) |
Min. Reading m³ |
Max. Reading m³ |
|
DN15 |
B |
3.125 |
2.5 |
0.05 |
0.03125 |
0.0001 |
99999 |
|
DN20 |
B |
5 |
4 |
0.08 |
0.05 |
0.0001 |
99999 |
|
DN25 |
B |
7.875 |
6.3 |
0.126 |
0.07875 |
0.0001 |
99999 |
