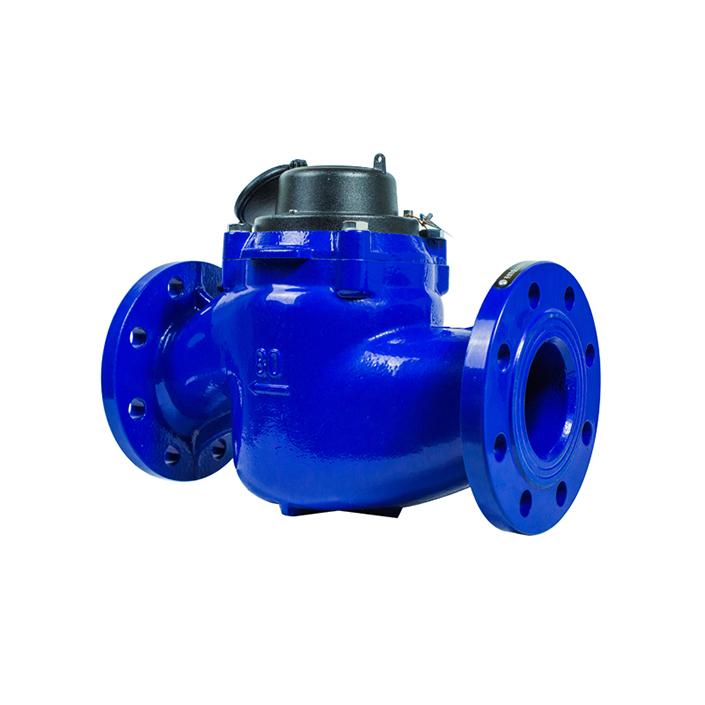

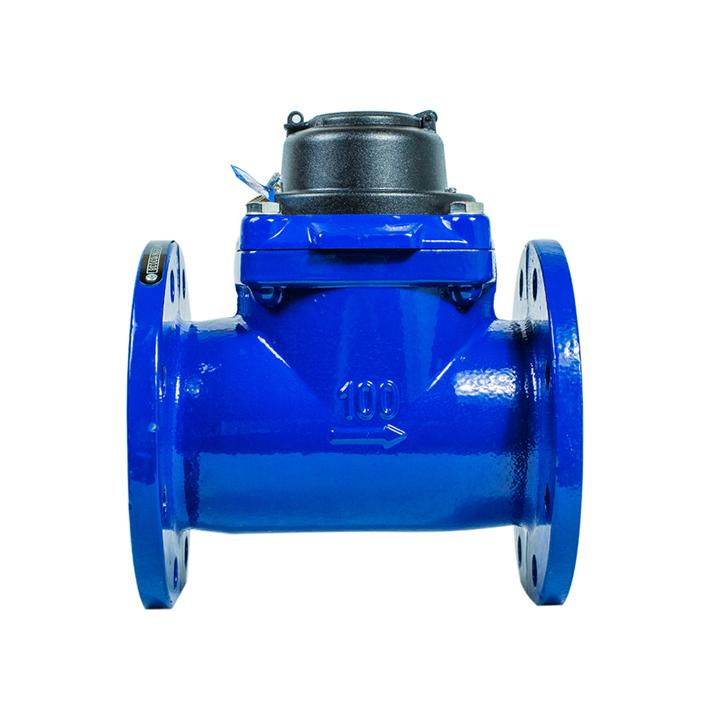

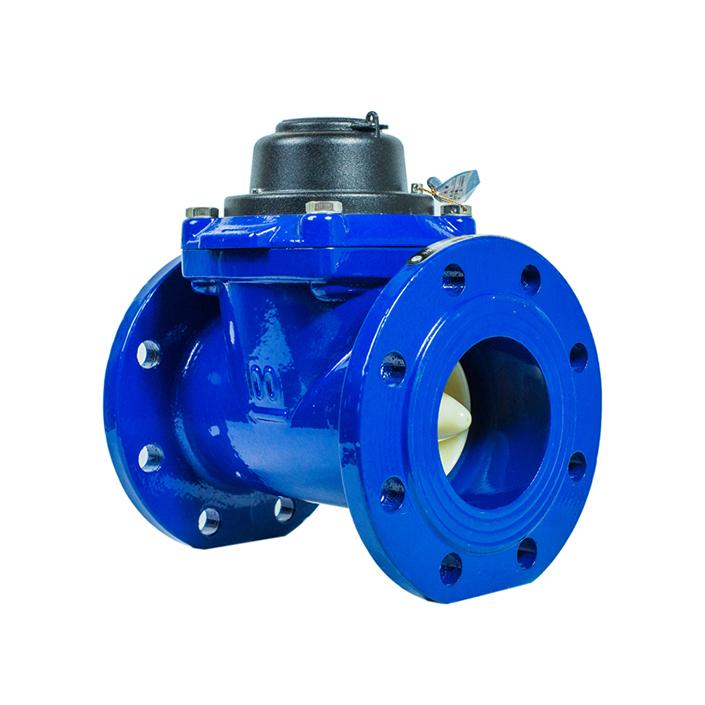

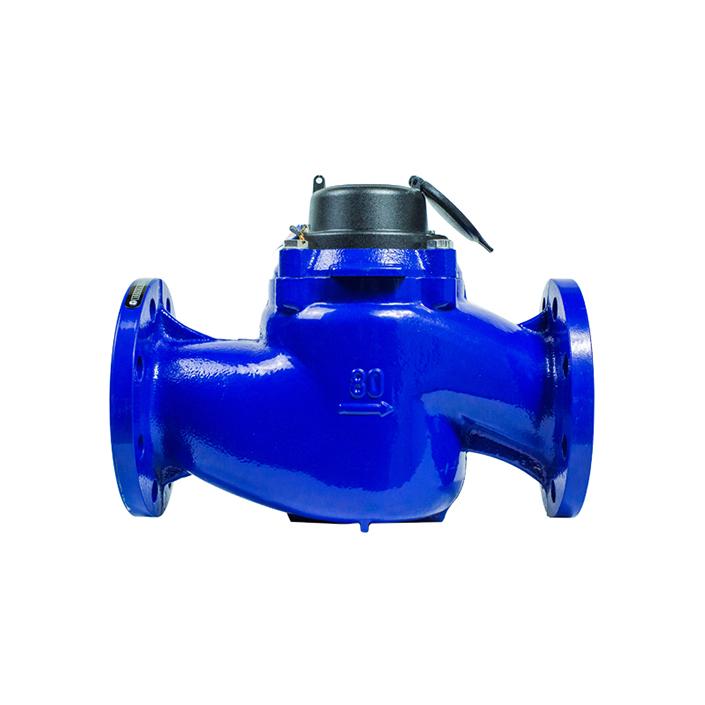

Woltman water meter

Woltman Helix water meter can be divided into horizontal Helix Woltman water meter(WPH) and vertical Helix Woltman water meter(WS) according to different of water meter internal structure, but the water meters are installed horizontally,The advantage of vertical Woltman water meter(WS) is a wider flow range(R80/R160/R200). The installation does not need the strict requirements of straight pipe section and external filter.

Tell:WhatsApp:+86 18603780816
Product Description

Characteristics of woltman water meter

Wide measuring range.

Full flow detection, high measurement accuracy.

Dry magnetic transmission structure ensures the counter is clean and clear.

The six digit enlarged digital wheel displays the reading,the reading is clearer.

The detachable metering structure is convenient for maintenance.

Stainless steel filter screen effectively protects the measuring mechanism.

The high wear-resistant bearing system (bearing for aviation instrument + high wear-resistant cemented carbide shaft) ensures the long-term stability.

Stainless steel fasteners and epoxy resin powder are applied inside and outside the shell to maximize rust prevention and prolong the service life.

Optional anti prying protective cover

 Low starting flow, high overload capability

Supply condition

Model

WS Woltman Water Meter

WPH Woltman Water Meter

Diameter

DN40~DN200

DN50~DN600

Body materials

Cast iron

Max work pressure

MPA10

Pressure loss

≤0.063Mpa

Water temperature

T30,T50,T90(optional)

Installation method

horizontal

Measuring range (R)

R160/R200/R250

R50

Sensitivity requirement

No

U10D5

External filter

No need

Yes

A The maximum allowable error of a low area (Q1 ≤ Q Q2) is ± 5%

B when the water temperature is ≤ 30 , the maximum allowable error in the high area (Q2 ≤ Q ≤ Q4) is ± 2%

When the water temperature is > 30 , the maximum allowable error in the high area (Q2 Q Q4) is ± 3%

Application Range

Water resources management

Agricultural irrigation

Garden management

Industrial production

Industrial automatic control and other industries


Technical Specification

Main technical parameters:

DN

(mm)

Flow range

Common flow

Q3

Maximum flow

Q4

Boundary flow

Q2

Minimum flow

Q1

Minimum reading

Maximum reading

Q3/Q1

M3/h

M3

40

50/200

40

50

1.28/1.25

0.8/0.2

0.0001

999,999

50

50/200

40

50

1.28/1.25

0.8/0.2

0.0001

999,999

80

50/200

63

80

2.0/2.0

1.26/0.32

0.0001

999,999

100

50/200

100

125

3.2/3.12

2.0/0.5

0.0001

999,999

150

50/200

250

312

8.0/7.88

5.0/1.25

0.0001

999,999

200

50/200

400

500

12.8/12.5

8.0/2.0

0.0001

999,999
