The volumetric water meter measures the volume of the actual fluid passing through the water meter. Therefore, the measurement of volumetric water meter is more accurate than that of multi jet water meter. The measurement error of multi jet water meter will have an error of ± 2% according to the passing fluid velocity, while the error of volumetric water meter can be controlled at the level of ± 0.5% or even lower.
Volumetric water meters are generally used in precision enterprises or test places because of their accurate measurement effect; The speed water meter is generally used for normal domestic and industrial water.
Characteristics:
♦ High measurement accuracy
♦ Better sensitivity
♦ Large flow range
♦ Multi angle installation
♦ Adopt volumetric rotary piston, more accurate for measurement

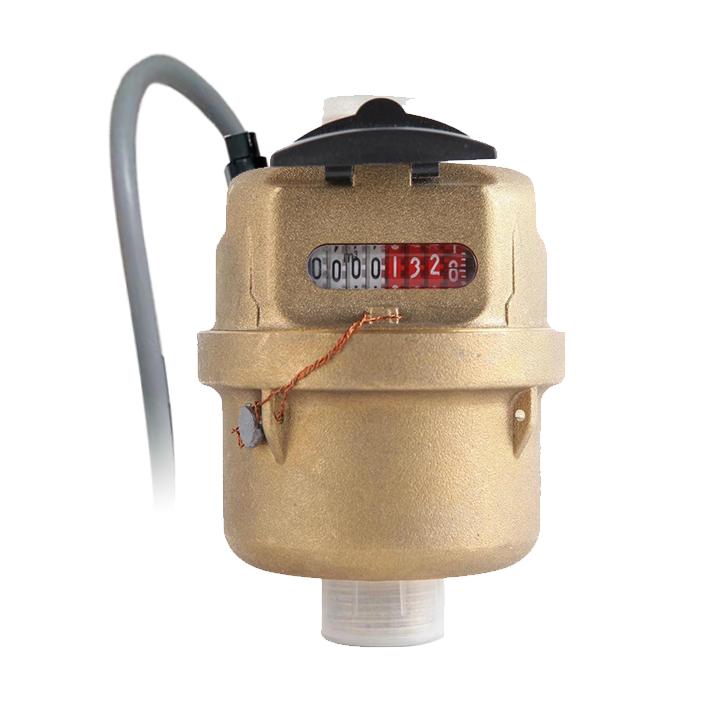

♦ Remote transmission device can be added upon request
Supply condition
Size:DN15,DN20
Body:Brass/plastic(optional)
Max work pressure:PN16
Pressure loss:≤0.063Mpa
Water temperature:T30,T50
Standards:ISO4064.Class C
R:R160(R=Q3/Q1)(optional)
Install:Horizontal, Vertical or inclined
Connection method: BSP Thread

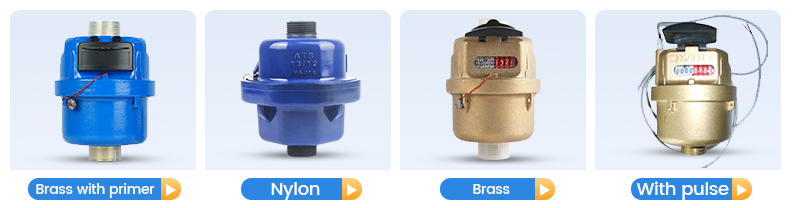

the water meter body can be choose brass,brass with primer and ABS.
Please check the attachment for more information：
1.Household
2.Dormitory
3.Hotel
4.Residential property
5.Apartment
6.Warehouse
| Size | Length（mm） | Width（mm） | Connect thread | Weight（Kg） |
| DN15 | 115 | 95 | G34B | 1 |
| Size | Class | R=(Q3/Q1） | Q4（m³/h） |
Q3（m³/h） |
Q2（L/H） |
Q1（L/H） |
| DN15 | C | 160 | 3.125 | 2.5 | 25 | 15.625 |
